Product Details:
Payment & Shipping Terms:
|
Type: | Handle Padlock | Material: | Copper Cylinder, Steel Shackle, Aluminum Body |
---|---|---|---|
Usage: | Oil, Chemical, Led Lighting, Industrial Manufacturing | OEM Service: | Lock Body And Key Can Print Customer′s Logo |
Keys: | KD With 2 Keys, KA With 1 Key | Key System: | KA, KD, MK, KAMK, GMK |
Sample: | Yes, Available | Logo: | Laser Or Print Customers Logo Is Available |
Shackle Length: | 76mm |

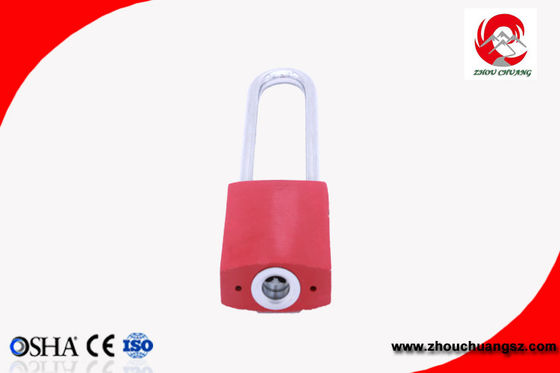

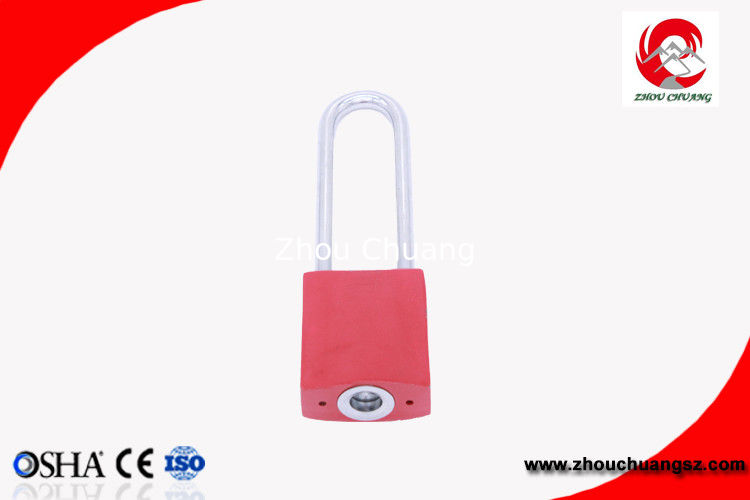

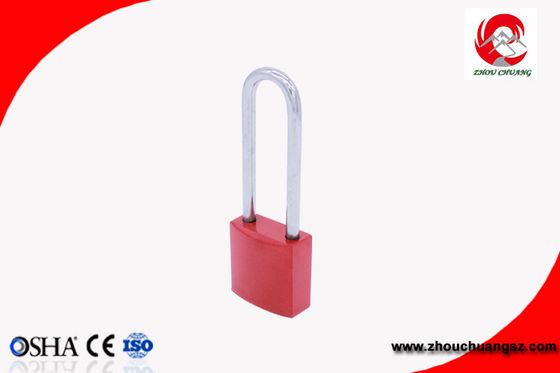

Different Key Red Aluminum Safety Lockout Padlock 76mm Shackle
Features:
ZC-G61 Aluminum lockout padlock:
1. brass body
2. Finish: Nickel / chrome
3. Cylinder material: Brass
4. nickel plated brass keys
5. Package: Double blister / box / sliding card.
Specification:
1. Lock body: aluminum
2. Lock shackle: hardened chrome steel
3. Color: 8 kinds of optional
4. Three size for shackle: 1 "(2.5cm) , 11/2" (3.8cm) or 3" (7.6cm)
5. Diameter for: 6.4mm
6. Lock body: 4.1cm (height) x 3.8cm (width) x 1.9cm (thickness).
7. Aluminum padlock is designed for lockout/tagout
8. Resistance of chemical,extreme temperatures and UV rays.
9. Weight of 142g/pc
10. Provide with labels and laser printing if necessary.
11. All Colors are available
Colors available : Red Blue,Orange,Yellow, Green ,Teal, Purple,Black,White.
Technical Specification:
Part Code | Description | Size(mm) |
A B C D | ||
ZC-G61 | Normal Shackle | 6 40 20 40 |
ZC-G62 | Long Shackle | 6 80 20 40 |
ZC-G63 | Normal Shackle | 10 33 23 50 |
Related Safety Lockout Padlock:
Model No | Details |
ZC-G01 | Short shackle steel padlock |
ZC-G11 | Short shackle Nylon padlock |
ZC-G21 | Long shackle steel padlock |
ZC-G31 | Steel shackle stainless steel padlock |
ZC-G51 | Normal Shackle , Laminated Padlock |
ZC-G52 | Long Shackle , Laminated Padlock |
ZC-G61 | Normal Shackle , Aluminum Padlock |
ZC-G62 | Long Shackle , Aluninum Padlock |
Key System:
Keyed Differ System(KD): | Each padlock is keyed differently, supplied with 2 keys per lock. 200000pcs individual padlocks available. |
Keyed Alike System(KA): | Each padlock is keyed the same. 1 key will open all padlocks in each group. |
Differ & Master Key System(MK): | Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks. |
Alike & Master Key System(KAMK): | Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed. |
Our Service:
1. OEM Manufacturing welcome: Product, Package.
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Where use LOCKOUT/TAGOUT?
1.Perform daily maintenance on the equipment,adjustment,cleaning,inspection and debugging etc.
2.Operation under high pressure
3.The operation that needs to temporarily turn off the security system.
4.Widely used in petrochemical,chemical,nuclear power,military automobile ship building industries,suitable for oil pipelines,cable interlayer,platform channel,pup house,Tunnel Project,Mountain-climbing,Hiking,Patrolling,Overhauling and Emergency in electrical power company,Mine,Military,Police,Firefighting,Dockyard and other hazardous locations.
LOCKOUT/TAGOUT Requirements
1.If more than one individual is required to work on a particular piece of equipment,each shall place his own personal LOCKOUT/TAGOUT device on the energy isolating devices.
2.Never authorize to other employees to remove your LOGO devices.
3.During work shift,never remove your LOCKOUT/TAGOUT devices before another to confirm the LOCKOUT/TAGOUT devices are safety and then begin operations.
4.Each LOCKOUT/TAGOUT device with the name of the employee for operations.
Each employee can't continue operations depend on others' LOCKOUT/TAGOUT devices.
5.Proper application and utilization of LOCKOUT/TAGOUT devices.
6.A periodic inspection of the energy control procedures shall be conducted at least annuanlly to ensure that the procedure and the requirments of this standard are being followed.
7.If there is a poss ability of re-accumulation no longer exists.
8.Outside person,such as contractors,must be aware of the LOTO procudures of the Company.This is best accomplished with outside person during the initial meeting where a copy of the Company's LOTO program can be presented and discussed along with oher safety program requirments.
1.Learn well how to use the equipment.
The quthorized employee shall know well the power supply equipment's position.performance and how to control the power source LOCKOUT/TAGOUT procedure also will present which power source,switch need lockout.And please comply with the LOCKOUT/TAOUT procedure on devices
2.Notify personnel.
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoid error operating accidents.
3.Shutdown equipment
Power switch off,or in a state of grounding,and apply TAGOUT to warn others.
4.De-Energize and lock power source.
Use LOCKOUT/TAGOUT for hazardous power source,e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve.
5.Release stored energy.
Must release stored energy before maintaining.The release stored energy is hidden may cause personal injury in the case of unknown the equipment starts up suddenly.
6.Verify zero energy state
In any case,in the event of the change of LOCKOUT/TAGOUT,it must be assured that the device is at zero energy state before work resumes.This step must be operated by authorized person,the verification results of other employee are regarded as invalid.
7.Restor the LOCKOUT/TAGOUT devices
Please restoring the LOCKOUT/TAGOUT devices immediately after testing,If it needs to remove the LOCKOUT/TAGOUT devices for equipment testing.
8.Remove LOCKOUT/TAGOUT devices
Work completed,before remove LOCKOUT/TAGOUT devices,please ensure nobody around the machines or equipment and notify relevant persons this equipment will re-startup.Only authorized employees can remove LOCKOUT/TAGOUT devices.
Our company
SHEN ZHEN ZHOU CHUANG TECHNOLOGY CO.,LTD is a reputed and leading manufacturer of safety lockout and tagout devices and safety lockout accessories.Our safety solutions and equipments have achieved its desired growth due to the appreciation and goodwill that customers have showed on them from alll over the world.Our company is also well known for its sincere efforts at keeping up to customer satisfication and demands.
The safety lockouts and equipments are enviroment friendly.Our company is equipped to cater and offer the best safety products for different segments of industries such as Construction,Petrochemicals,Pharmaeuticals,Power plant,Mining,Iron and Steel,etc.We supply various high quality and durable safety lockout devices for the safety operation and identification of hazards.
In order to prevent injury to the employees by hazardous energy,disable machines or equipment,it requires employees to eatablish a program and utilize procedures for affixing appropriate lockout devices or tagout devices.Proper LOCKOUT & TAGOUT procedures can avoid many industrial accident.
Why choose Zhou Chuang ?
About us
Some of our strengths that make us your most reliable business partner are:
1) Extensive industry knowledge / experience
2) Wide range of products for diverse applications in various industry segments
3) Our comprehensive quality policy
4) Reliable, well-organized and efficient distribution network
5) Competitive prices
6) Our stable business model, robust finance,honest value system and customer-centric approach.
Warranty and ater-sales service
1) Warranty: 1 years, for defective one, we will replace a total new cap lamp during warranty time
2) After sales service: will deal with your complaint at first time, give you solution within 5 working days
3) Free samples: free samples will be provided when our new models come out
4) Market support: we can support you to do advertisment in local magazine and provide samples with
big discount for exhibition
Packing &Delivery
10Pcs/Box 20Pcs/Carton 20kg/Carton
We can customized the package for our customer,any requirements welcome to tell us.
FAQ
1. If you couldn’t find the exact product you want, never mind, just contact us and tell your requirements, we will arrange the moulds and manufacture for you.
2. No minimum order quantity required
3. Many products are available from stock with the next several days.
4. If required, goods can be collected from our factory directly to your customers.
5. We also support OEM manufacturing, with any given order quantity.
