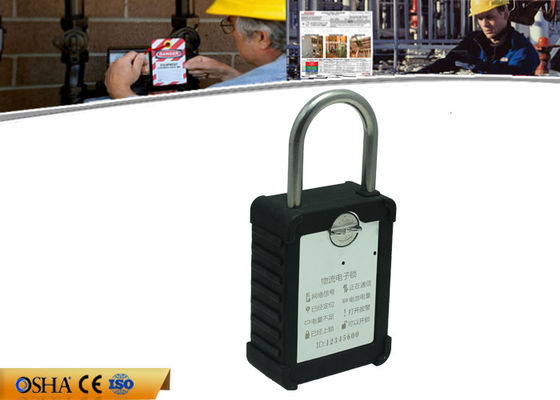

Container GPS Sealing Lock Tracker For Container Tracking And Locking

China Container GPS Sealing Lock Tracker For Container Tracking And Locking supplier
Container GPS Sealing Lock Tracker For Container Tracking And Locking supplier Container GPS Sealing Lock Tracker For Container Tracking And Locking supplier Container GPS Sealing Lock Tracker For Container Tracking And Locking supplier Container GPS Sealing Lock Tracker For Container Tracking And Locking supplier

Large Image :  Container GPS Sealing Lock Tracker For Container Tracking And Locking

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhou Chuang
Certification: CE, OSHA
Model Number: ZC-T08LCD

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: 1pcs in a neutral box
Delivery Time: sample order at once, bulk order within 15-20 working days
Payment Terms: T/T or Western Union in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment
Supply Ability: 10000 piece in one week
Contact Now
Detailed Product Description
Type: GPS Tracking E-lock Lock Control: Wireless Electronic
Customer Logo: Laser Or Print Customers Logo ID Dsign: All-in-one GPRS/GPS/RFID Design
Color: Normally Black, Other Colors Can Be OEM Usage: Industrial Car
Body: Printing Logo On Body Shackle: Steel Shackle

Container GPS Sealing Lock Tracker For Container Tracking And Locking

1.1 Main features of ZCT08 E-lock:

  • Wireless electronic lock control
  • Unique ID
  • Real-time status detecting and alarming
  • All-in-one GPRS/GPS/RFID design
  • Encrypted wireless operation
  • Manifest data store
  • Automatic control in checkpoint
  • Outdoor protection: Specially designed for most weather conditions.

1.2 Technical Spec

Dimension 100mm×70mm×30mm (L× W × H)
Lock lever 9mm (diameter)
Weight 650g
Lithium battery 10AH -rechargeable
Working current 20mA (working) 0.5Ma (Standby)
Wireless frequency 433MHz
Additional function GPS/GPRS module
Identify distance ≤80m
anti-collision 100Tags
Transmit power -10dBm-0dBm
Storage 1KB
Modulation type FSK
Built-in antenna Omnidirectional
Transmit power -10dBm-0dBm
Receiving sensitivity ≥-90dBm
Continuous working time 10 days
Protection rate IP68
Lifetime Over 5 years
Operating temperature -25℃ to 60℃
Relative humidity ≤90%
Air pressure 86KPa~106KPa





1.4 Remote monitoring functions of ZCT08 VA

Functions Description
Location Time interval monitoring Upload location data according to time interval
Distance interval monitoring Upload location data according to distance interval
Call over monitoring Upload location data according to the center command
Alarm Across border alarm When the target go into or out of the monitoring area
Depart the track When the target depart the track
Over speed When the target is over spped
Damage alarm When the device is damaged
Remote control Remote control Send the seal or unseal command from the center
Setup Remote setup Remote setup some parameters
Other Over speed report Over speed report
Sleep mode Sleep mode for energy saving

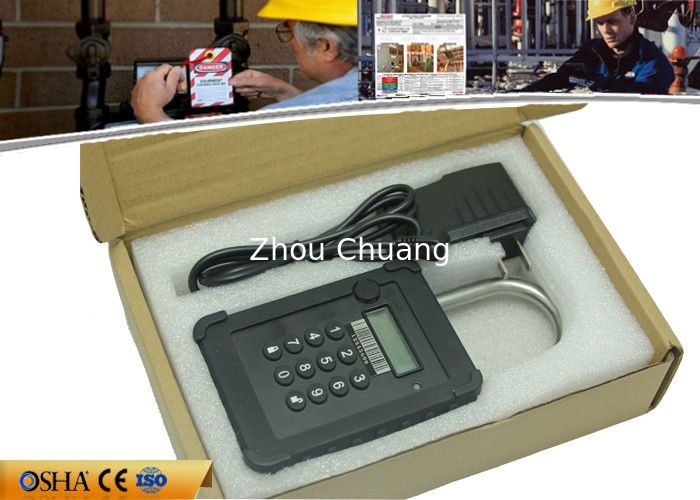

1.5 Main Parts of E-Lock Kit

1 × E-lock

1 × 5V DC charger

1 × User manual (Or E-User manual)

1.6 E-lock Description

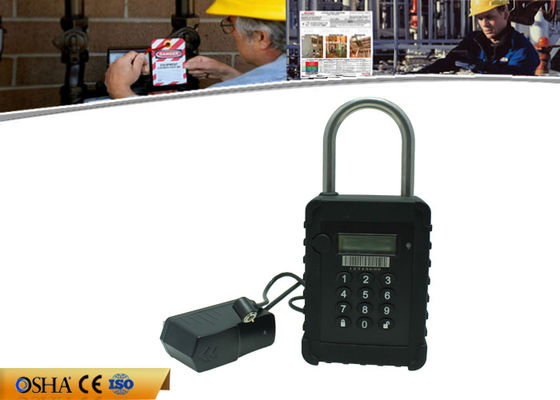

Container GPS Sealing Lock Tracker For Container Tracking And Locking



Container GPS Sealing Lock Tracker For Container Tracking And Locking

Container GPS Sealing Lock Tracker For Container Tracking And Locking



1.7 Over view



Right now, Customs uses traditional mechanical seal for cargo (or container) supervising on the way, which must be handled full manually during a customs' check. For a busy customs office, this method is time consuming and less efficient. Otherwise the mechanical seal has many disadvantages as following:

  • Easy to be copied
  • Manual work, manual abuse
  • Hardly present evidence
  • Non-auto-electronic control
  • Castoff lead pollution



Container GPS Sealing Lock Tracker For Container Tracking And Locking

E-lock system is developed to improve the cargo in-transmit monitoring. Based on advanced RFID wireless technology and micro control technology, the system will ensure the security of transition between the port and special district as well as improve the transportation efficiency.. It is mainly applied to the container transfer monitoring, especially for Customs supervising.



The following table is the contrast of the E-lock and mechanical seal:

Items ZCT08 E-lock Mechanical seal
Monitoring in midway Monitoring the status of cargo in the whole transporting process none
Data storage Store the operation data at the checkpoint and the status or alarm data on the way none
Reliability Combined physical lock and information lock. Double lock control Easy to be destroyed
Operation Full automatically at standard gateway and easy to operate. Manual work
Evidence present Easy present electronic data in case Hardly present evidence
Efficiency High efficiency Low efficiency
Usability Reusable One-off
environmental No pollution Castoff lead pollution



2. E-lock Indicator Description

2.1 E-lock indicator label

Container GPS Sealing Lock Tracker For Container Tracking And Locking

2.2 Important Notes and warnings

  • ZCT08 Electronic lock uses built-in lithium battery, which can be charged and discharged about 500 times. The working voltage is 3.7-4.2D DC
  • Try not to use the E-lock in extreme environment as that with extremely high or low temperature, high humidity or corrosion. Lithium battery capacity and function can go down dramatically when its used beyond the temperature range -25℃ to 60℃
  • Working voltage of E-lock is 3.7V-4.2V, when the voltage is lower than 3.7V, it can still work. But to avoid battery drains during the trip, when locking at this time, it will prompt: lock failed with low voltage. Instant recharging is needed
  • After locking, the magnetic side of the lock need to be attached to the door of vehicle tightly



2.3 Warnings when using at dangerous site.

When using the E-lock at dangerous sites with gas, petrol etc, please note below:

  • Handle with care and follow the instruction
  • Charging need to be done in safe sites and use the specific charger from manufacturer.
  • Assembly or change components are prohibited, in order not to affect its feature of anti-explosion
  • Charging at dangerous sites is prohibited.

2.4 Important Notes and warnings

  • ZCT08 Electronic lock uses built-in lithium battery, which can be charged and discharged about 500 times. The working voltage is 3.7-4.2D DC
  • Try not to use the E-lock in extreme environment as that with extremely high or low temperature, high humidity or corrosion. Lithium battery capacity and function can go down dramatically when its used beyond the temperature range -25℃ to 60℃
  • Working voltage of E-lock is 3.7V-4.2V, when the voltage is lower than 3.7V, it can still work. But to avoid battery drains during the trip, when locking at this time, it will prompt: lock failed with low voltage. Instant recharging is needed
  • After locking, the magnetic side of the lock need to be attached to the door of vehicle tightly

2.5 Warnings when using at dangerous site.

When using the E-lock at dangerous sites with gas, petrol etc, please note below:

  • Handle with care and follow the instruction
  • Charging need to be done in safe sites and use the specific charger from manufacturer.
  • Assembly or change components are prohibited, in order not to affect its feature of anti-explosion
  • Charging at dangerous sites is prohibited.

3. Working process of E-lock



Container GPS Sealing Lock Tracker For Container Tracking And Locking
