|Type:||Safety Xenoy Nylon Padlock||Material:||Steel Shackle, ABS Body, Brass Cylinder|
|Color:||Red, Yellow, Blue, Green, Black, White, Orange, Purple||Key System:||KA, KD, MK, KAMK|
|Lock Body:||A, B, C, D, E||Usage:||Oil & Gas, Chemical, Power And Any Industrial|
|Language:||English Normal, Customers Language Is Available||OEM/ODM:||Yes, Accept ODM/OEM Orders|
|Shackle Length:||76mm||Shackle Diameter:||6mm|

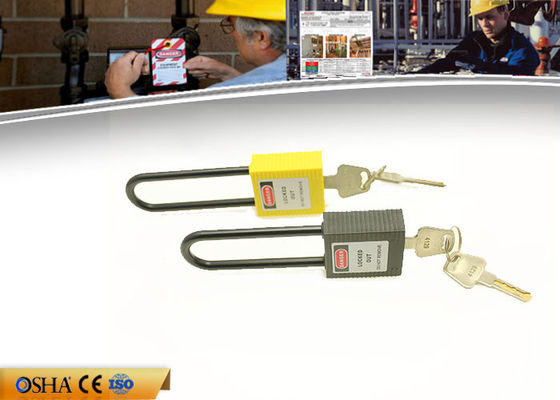

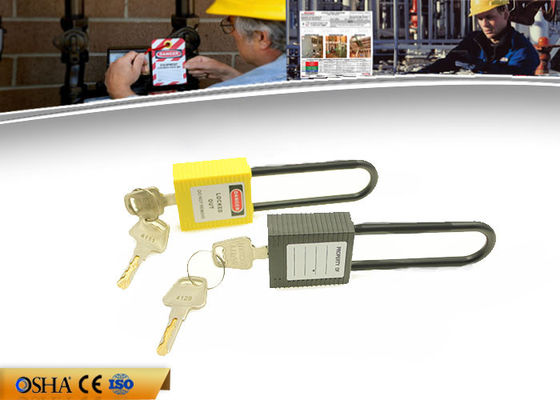

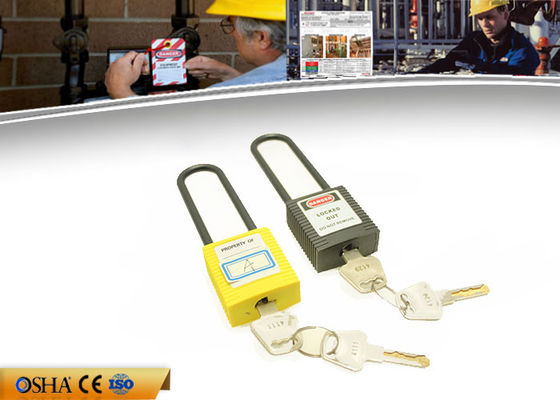

LOTO Devices 76mm Long Shackle Dupont Nylon Safety Lockout Padlock
Brand: Zhou Chuang
Part code: ZC-G31L~ZC-G38L
Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple and Gray
Material: Steel & Nylon PA
Shackle height: 76mm
MATERIAL: Insulation nylon shackle and reinforced plastic body.
a) Durable, lightweight, non-conductive lockout device.
b) insulation and non conductive against electric shocks
c) Standard English Write-on warning label. Other design or language can be custom made.
d) Key Retaining Feature: key is retaining while the locks are opened.
e) High Security 12 pin cylinder lock, up to 500000pcs different locking mechanisms. KA, KD, MK, KAMK and GMK system supported.
f) Laser printing and logo engraving available if required.
g) Shackle Length 76mm, diameter 6mm. Other lengths can be custom made.
|Mold No.||Deacription||Lock shackle materials||Key System||Remarks|
|ZC-G31L||76mm long shackle,red||nylon||
USUALLY USED IN
|ZC-G32L||76mm long shackle,yellow|
|ZC-G33L||76mm long shackle,blue|
|ZC-G34L||76mm long shackle,green|
|ZC-G35L||76mm long shackle,black|
|ZC-G36L||76mm long shackle,white|
|ZC-G37L||76mm long shackle,orange|
|ZC-G38L||76mm long shackle,purple|
1. Keyed Differ System (KD): Each padlock is keyed differently, supplied with 2 keys per lock. 20000 pcs individual padlocks available .
2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.
3. Differ & Master Key System (MK): Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks.
4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.
What is LOCKOUT / TAGOUT
A Lockout is a method of keeping equipment from being set in motion and endangering workers.
1. A Disconnect switch, circuit breaker, valve or other energy isolation mechanism is put in the safe or off position.
2. A Safety device is placed over the energy-isolating mechanism to hold it in the safe position. This is where Godrej Safety Lockout products are essential.
3. A Padlock is attached so that the equipment cannot be energized.
In a Tagout, the energy-isolation device is placed in the safe position and a written is attached to it. All lockout and tagout materials are supplied by the employer. Each device must be:
Durable to withstand wear.
Substantial, so it will not come off easily.
Capable of identifying the person who applied it.
Many Companies issue each worker authorized to apply Lockout / Tagout with their own personal padlock imprinted with his / her name.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Our Safety Lockouts ad Padlocks are widely used in chemical, electrical, automobile industry etc.
REGISTER KEY SYSTEM
It is important that each employee at a site has a unique padlock key to help prevent duplicate keys from jeopardizing your lockout program. We promise to use different key and numbering for each order if required. Besides each key can be recorded in our programming system so that you can reorder the same key whenever necessary.
|76mm nylon shackle and plastic nylon body|
|KA-G33L||keyed alike, 1 key/lock|
|KD-G33L||Keyed differ, 2 keys/lock|
|MK- G33L||Master & differ, 2 keys/lock, master keys customized|
|KAMK- G33L||Keyed alike & master key, 1 key/lock, master keys customized|
|GMK- G33L||Grand Mater key system, 2 kesy/lock, master key and grand master key customized.|
|All colors available, normal color: RED, YLW, BLU, GRN, ORJ, PRP, BLK, WHT, GRY|
|OEM service: customized label, logo, key number, package box, etc.|
Samples are avaliable for Testing and Market Test.
Warranty of Products
Shenzhen Zhou Chuang provides warranty against defects in materials and workmanship, We strictly control every production process, the product provides 6 tests before leaving factory.
Guides and After-service Consultancy
Shenzhen Zhou Chuang Team will offer these guides below
A .Need an Accessory?
C.How to solve some quality problem?
Hours After-service consultancy just for you and to make your problems to solve easily.
OEM service of Shenzhen Zhou Chuang is strictly based on the ISO9001 ISO14001 quality assurance system.The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, Purchasing,production&QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 9 years.
Application LOCKOUT/TAGOUT - 8 Steps
1. Learn Well How to Use the Equipment
The authorized employee shall know well the power supply equipment's position, performance and how to Control the power source. LOCKOUT/TAGOUT procedure also will present which power source, switch need lockout, And please comply with the LOCKOUT/TAGOUT procedure on devices
2. Notify Personnel
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoidr error operating acceidents
3. Shutdown Equipment
Power switch off, Or in a state of grounding, and apply TAGOUT to warn others
4. De-Energize and apply LOTO devices
Use LOTO for hazardous power source, e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve
5. Release Stored Energy
Must release stored energy before maintaining, the release stored energy is hidden, may cause personal injury In the case of unknown, the equipment start up suddenly
6. Verify Zero Energy State
In any case, in the event of the change of LOTO, it must be assured that the device is at zero energy state before work resumes. This step must be LOTO by authorized person, the verification results of other employee are regarded as invalid
7. Restoring the LOTO devices
Please restoring the LOTO devices immediately after testing, if the equipment for testing and removed the LOTO devices for equipment testing.
8. Remove LOTO Devices
Work Completed, Before remove LOTO devices, please ensure nobody around the machines or ewuipment, and notify Relevant person this equipment will be re-startup. Only authorized employee can remove LOTO devices.
