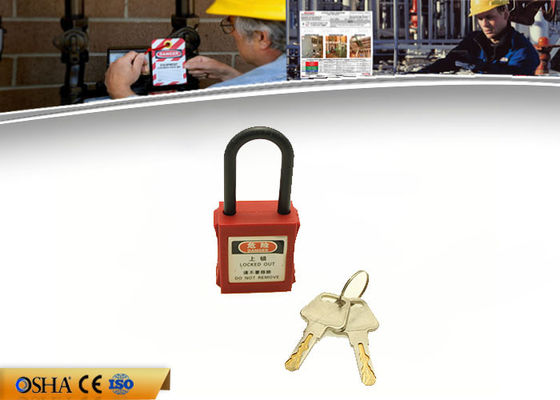

Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks

China Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks supplier
Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks supplier Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks supplier Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks supplier Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks supplier

Large Image :  Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhou Chuang
Certification: CE, OSHA
Model Number: ZC-G11

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 1 pcs padlock and key in a colorful box, 10pcs in a box, 200pcs in a carton
Delivery Time: sample order at once, bulk order within 15-20 working days
Payment Terms: 100% T/T or Western Union Payment Before Delivery The Goods.
Supply Ability: 100000 piece in one month
Contact Now
Detailed Product Description
Type: Safety Xenoy Padlock Material: Nylon Shackle, ABS Body, Brass Cylinder
Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple Key System: KA, KD, MK, KAMK
Lock Body: A, B, C, D, E Usage: Oil & Gas, Chemical, Power And Any Industrial
OEM, ODM: Yes, Available Language: English Normal, Customers Language Is Available
Logo: Customers Logo Is Available Sample: Free Sample Is Available


Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks

Product Parameter
Brand: Zhou Chuang
Part code: ZC-G11~ZC-G18
Color: Red, Yellow, Blue, Green, Black, White, Orange and Purple
Material: Steel & Nylon PA
Shackle height: 38mm
Shackle dia:6mm
Weight: 105g

Detail Display
High quality Steel Shackle
High Quality Nylon Lock Body(fill in the back side with the name of the manager and other important information)
skid Resistant: convenient for workers to work. (the new body, E type is the most skid resistant)
6pins cylinder: ensure the safety and further less the situation of repeating
Key Retaining: ensure the key not to be lost.

Technical Specification


Model No.DescriptionLock shackle materialsShackle lengthShackle diameterBody widthBody lengthKey system
ZC-G11short shackle(Red)Nylon38mm6mm38mm45mmKA, KD, MK, KAMK, GMK
ZC-G12short shackle(Yellow)
ZC-G13short shackle(Blue)
ZC-G14short shackle(Green)
ZC-G15short shackle(Black)
ZC-G16short shackle(White)
ZC-G17short shackle(Orange)
ZC-G18short shackle(Purple)


Key Systems

1. Keyed Differ System (KD): Each padlock is keyed differently, supplied with 2 keys per lock. 20000 pcs individual padlocks available .
2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.
3. Differ & Master Key System (MK): Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks.
4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.

Safety Lock Out Padlock Body Types

A, B, C, D, E five bodies, the B and D types are most popular.

Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.

Product Application

Our Safety Lockouts and Padlocks are widely used in chemical, electrical, automobile industry etc.

Product Pictures





Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks
Osha 38mm Nylon Non - Conductive PA Bady Safety Lockout Padlocks

Application LOCKOUT/TAGOUT - 8 Steps

1. Learn Well How to Use the Equipment
The authorized employee shall know well the power supply equipment's position, performance and how to Control the power source. LOCKOUT/TAGOUT procedure also will present which power source, switch need lockout, And please comply with the LOCKOUT/TAGOUT procedure on devices
2. Notify Personnel
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoidr error operating acceidents
3. Shutdown Equipment
Power switch off, Or in a state of grounding, and apply TAGOUT to warn others
4. De-Energize and apply LOTO devices
Use LOTO for hazardous power source, e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve
5. Release Stored Energy
Must release stored energy before maintaining, the release stored energy is hidden, may cause personal injury In the case of unknown, the equipment start up suddenly
6. Verify Zero Energy State
In any case, in the event of the change of LOTO, it must be assured that the device is at zero energy state before work resumes. This step must be LOTO by authorized person, the verification results of other employee are regarded as invalid
7. Restoring the LOTO devices
Please restoring the LOTO devices immediately after testing, if the equipment for testing and removed the LOTO devices for equipment testing.
8. Remove LOTO Devices
Work Completed, Before remove LOTO devices, please ensure nobody around the machines or ewuipment, and notify Relevant person this equipment will be re-startup. Only authorized employee can remove LOTO devices.
Application LOCKOUT/TAGOUT - 8 Steps

1. Learn Well How to Use the Equipment
The authorized employee shall know well the power supply equipment's position, performance and how to Control the power source. LOCKOUT/TAGOUT procedure also will present which power source, switch need lockout, And please comply with the LOCKOUT/TAGOUT procedure on devices
2. Notify Personnel
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoidr error operating acceidents
3. Shutdown Equipment
Power switch off, Or in a state of grounding, and apply TAGOUT to warn others
4. De-Energize and apply LOTO devices
Use LOTO for hazardous power source, e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve
5. Release Stored Energy
Must release stored energy before maintaining, the release stored energy is hidden, may cause personal injury In the case of unknown, the equipment start up suddenly
6. Verify Zero Energy State
In any case, in the event of the change of LOTO, it must be assured that the device is at zero energy state before work resumes. This step must be LOTO by authorized person, the verification results of other employee are regarded as invalid
7. Restoring the LOTO devices
Please restoring the LOTO devices immediately after testing, if the equipment for testing and removed the LOTO devices for equipment testing.
8. Remove LOTO Devices
Work Completed, Before remove LOTO devices, please ensure nobody around the machines or ewuipment, and notify Relevant person this equipment will be re-startup. Only authorized employee can remove LOTO devices.

Tag: Lock Out Padlocks,Lock Out Hasp
