Product Details:
Payment & Shipping Terms:
|
| Type: | Cable Lockout Tagout | Color: | Red |
|---|---|---|---|
| Cable Length: | 1.8m | Size: | 110*110*40mm |
| Cable Thickness: | 2mm | Equipped Padlock: | 2 Padlocks |
| Customers Logo: | Yes, Available | Sample: | Yes, Available |
| High Light: | Lock Out Tag Out,Safety Lockout Hasp |
||
Multifunction Red PC Automatic Telescopic Safety Cable Lock Out
Features:
ZC-L33 Automatic Telescopic Cable Lockout
1. It's shock resistant withstand high or low temperature.
2. It can have a long-term use in the environment of -35°C to 85°C.
3. The cable can be extended according to your need within 1.8M.
4. Lightly press the winding switch button, the cable can automatic retract.
5. With rebound system inside the button, the tension is strong when using.
6. The cable is made by material control accessory stamping technology, fixed permanently and used assuredly. Electroplated coating makes rustproof surface.
7. Logo or other information you need can be customized.
Product Details:
1. Matrerial
Automatic retractable cable lockout is made of polycarbonate Plastic (PC),impact resistance,abrasive resistance, heat resistance,low temperature resistance ,can withstand the temperature of -35°C to85°C.
2. Function
Automatic retraction ,press the winding switch button,the cable can automatic retract and hidden in the lockout ;maneuverable,portable ,durable.
3. Parameter
Dimension: 110mm*110mm*40mm
Cable Diameter: 2.0mm
Cable Length: 1.8m
Socket: 7*4.5mm
Padlock Shackle Diameter: ≤7mm
Padlock Quantity: 2PCS
| Brand |
Part Code |
Color | Material |
| Green Lighting or OEM | ZC-L33 | Red, can custom made other colors | Steel and PA |
| Lockout weight | Lockout size | Cable Diameter | Usable Length |
| 200g | 110*110*40 | 2.0mm | 1.8m |

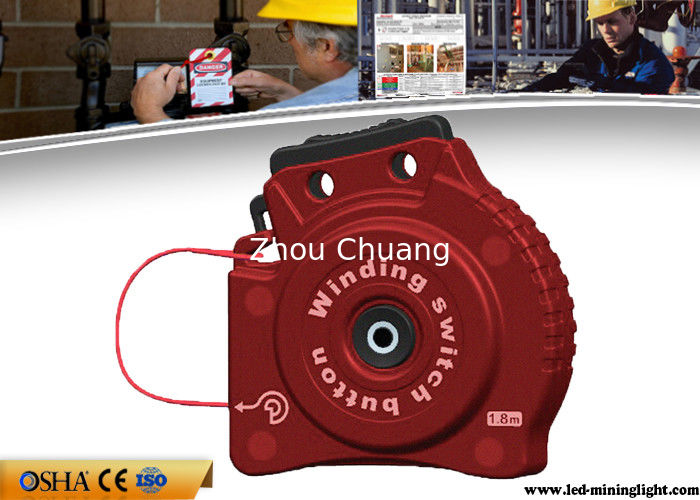

4. Cable lockout Image
Related Cable Lockout:
| Model No | Details | ||||||||
| ZC-L01 | Multipurpose Cable Lockout ,2.4m, 1/8'' | ||||||||
| ZC-L11 | Adjustable Cable Lockout with 1.8m 6mm dia steel cables | ||||||||
| ZC-L12 | Adjustable Cable Lockout with 1.8m 3mm dia steel cables | ||||||||
| ZC-L21 | Economic Cable Lockout | ||||||||
| ZC-L41 | Wheel type cable lockout, assebled without tools | ||||||||
| ZC-L33 | Size: 110*110*40cm, cable thickness 2mm, length 1.8m. Available for padlock shackle maximum diameter 7mm, cab be locked out by 2 pieces padlocks. | ||||||||
How to Use this cable lockout:
1. First, press the top button then it will upspring. The lockout opens up and the cable can be extended according to your need.
2. Lightly press the winding switch button, the cable can automatic retract.
3. Not press the winding switch button, the cable will stop automatic retracting, press the top button and hang on safety padlock through the hole on the top button at last.
Application:
1. Land Drilling
2. Marine Oil
3. Chemical Refining
4. Industrial Manufacturing
5. Power Transmission and Distribution.
Our Cable Lockout Tagout Safety:
Our range of cable lockouts are ideal devices for securing most valves,isolators and industral machines.
Manufactured from an impact copolymer polypropylene with stainless steel internal parts and PVC coated steel cable,accepts 4-8Padlocks for multiple lock applications.
