Payment & Shipping Terms:
|Customer Logo:||Yes, Can Laser Or Print Customers Logo On Products||Sample:||Have In Stock, Sample Is Available|
|Color:||Normally Red, Other Colors Can Be OEM||Package:||1pcs One Box|
|Weight:||1358G||Brand:||Zhou Chuang Or OEM|

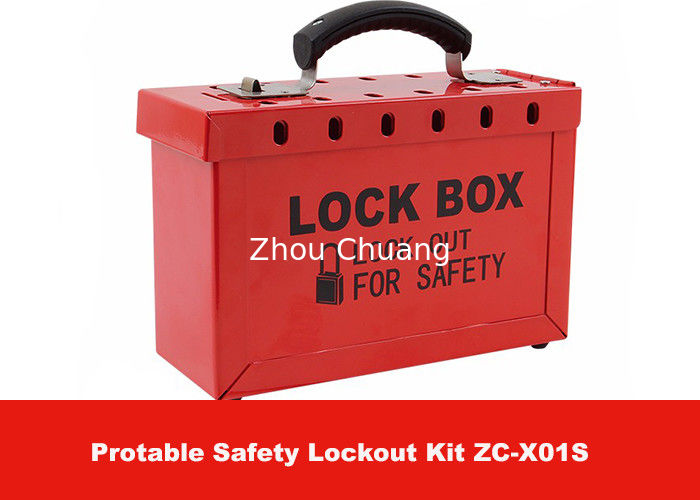

1358G Steel Red Portable Safety Lockout Kit with 12 pcs Padlocks
a.Made from surface high temperature spraying plastics treatment steel plate and foldable handle.
b.Several person can lock the important parts at the same time, can accommodate 12 padlocks.
c.Can used as mini portable lockout box, can accommodate several tagouts, hasps, mini lockouts etc.
|ZC-X01S||W idth×height×thickness: 250×178×95mm|
Continue Improvement Ability
Cost down ability
Calculate and evaluate the product cost
Efficiency improve ability:
Equipment improvement/Automation improvement/
Process improvement to reduce the labor intensity.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Application LOCKOUT/TAGOUT - 8 Steps
1. Learn Well How to Use the Equipment
The authorized employee shall know well the power supply equipment's position, performance and how to Control the power source. LOCKOUT/TAGOUT procedure also will present which power source, switch need lockout, And please comply with the LOCKOUT/TAGOUT procedure on devices.
2. Notify Personnel
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoidr error operating acceidents
3. Shutdown Equipment
Power switch off, Or in a state of grounding, and apply TAGOUT to warn others
4. De-Energize and apply LOTO devices
Use LOTO for hazardous power source, e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve
5. Release Stored Energy
Must release stored energy before maintaining, the release stored energy is hidden, may cause personal injury In the case of unknown, the equipment start up suddenly
6. Verify Zero Energy State
In any case, in the event of the change of LOTO, it must be assured that the device is at zero energy state before work resumes. This step must be LOTO by authorized person, the verification results of other employee are regarded as invalid
7. Restoring the LOTO devices
Please restoring the LOTO devices immediately after testing, if the equipment for testing and removed the LOTO devices for equipment testing.
8. Remove LOTO Devices
Work Completed, Before remove LOTO devices, please ensure nobody around the machines or ewuipment, and notify Relevant person this equipment will be re-startup. Only authorized employee can remove LOTO devices.
Why choose Zhou Chuang ?
Some of our strengths that make us your most reliable business partner are:
1) Extensive industry knowledge / experience
2) Wide range of products for diverse applications in various industry segments
3) Our comprehensive quality policy
4) Reliable, well-organized and efficient distribution network
5) Competitive prices
6) Our stable business model, robust finance,honest value system and customer-centric approach.
We deliver quality to our customers through quality built into our products at various stages ranging from product design up to testing and through quality services to our customers.
To achieve these objectives, we have a highly knowledgeable / experienced team of professionals aided by highly skilled manpower, have deployed the latest technologies for product design/manufacturing/testing,have installed state-of-the-art management systems and have adopted customer-centric approach.
Warranty and after-sales service
1) Warranty: 1 years, for defective one, we will replace a total new cap lamp during warranty time
2) After sales service: will deal with your complaint at first time, give you solution within 5 working days
3) Free samples: free samples will be provided when our new models come out
4) Market support: we can support you to do advertisment in local magazine and provide samples with
big discount for exhibition
