Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting

China Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting supplier
Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting supplier Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting supplier Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting supplier

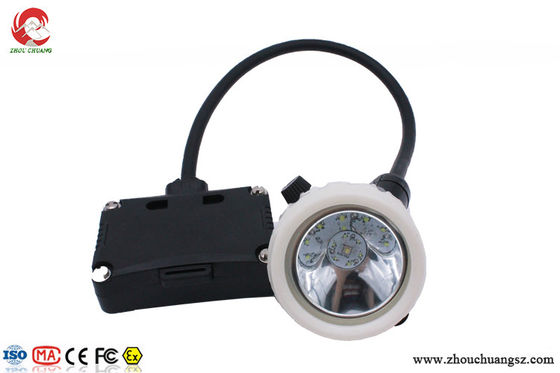

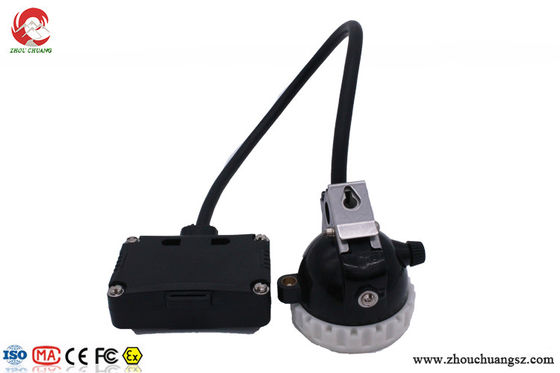

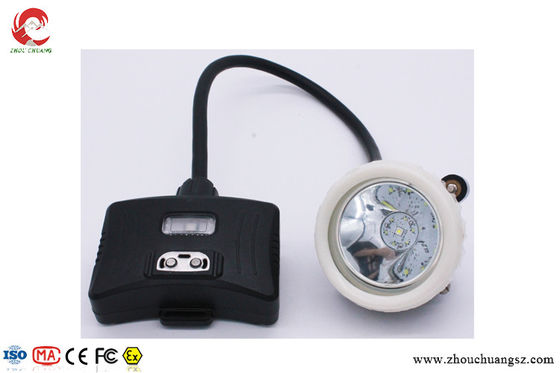

Large Image :  Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Zhou Chuang
Certification: CE,ATEX
Model Number: GLS5-B

Payment & Shipping Terms:

Minimum Order Quantity: 1-100PCS
Price: Can be negotiate
Packaging Details: 1pcs packed in a gift box
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 2000-10000 per month
Contact Now
Detailed Product Description
Product Name: LED Corded Mining Lamp Light Source: One Main Light Six Auxiliary Llights
Brightness: 10000lux Batrry Capacity: 5.2Ah
Weight: 360g Charging Ways: Desktop Charger
Waterproof Grade: IP67 Usage: Mining,oil,gas,other Speical Environment
Color: White+black

Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting





LED Miner Headlamp Features:

1.Our cap lamp maximum brightness can reach to15000LUX.

2.Small size, lightweight, one-handed operation is convenient and flexible.

3.RUN-TIME: Standard light 16 Hour

4.Brightness: 10000lux high beam corded lamp.

5. One main light and two auxiliary lights.

6. 7.8Ah big battery capacity and 18hours lighting working time.

7. Low power warning function for safety lighting.

8. Silicon button cap with good touch and long life usage.

9. Special material with flame-resistant, impact-resistant. ATEX explosion-proof, Dust-proof.

10. Environmental: Lithium battery with short circuit protection, overcharging protection and over-discharging, free maintenance long battery life span.

11. OEM and ODM are available. Write the request to cap lamps, such as clients' company name, LOGO, series No, and user name.

12. Optical Design: According to LED Luminous Flux, Light cup curve, and current to design the Light Beam.

13. Quality is our culture. We will be responsible for you if any quality problem and warranty time is one yea







Specifications:



Item Value
Model GS5-B semi-corded lamp
Light source one main light six auxiliary lights
Battery Capacity 5.2Ah Li-ion battery pack
Rated Voltage 3.7V
Main light current 350mA
Power of main light 1.3W
Illuminous 169lum
Brightness 10000lux
Life span of main light 100000hrs
Battery cycles 1200 cycles
Working time 16hrs
Weight 360g
Water-proof grade IP68


Features:


1.10000lux high beam corded lamp
2.One main light and six auxiliary lights
3.5.2Ah big capacity with just 360g
4.Low power warning function for safety lighting.
5.Rear warning light with red, green, blue three colors for option.
6.Safety rope for lamp falling down searching
7.Cable length can be customized as need
8.Anti-explosive, flame-resistant, impact-resistant, IP68 water-proof.





Underground Safety Miners Cap Lamp with Rear Warning Light for Underground Miners Safety Lighting





Trouble and troubleshooting:



Trouble description

Trouble analysis

Troubleshooting

Light is not on when pressing the button

Battery power is used up or automatic opening protection

Charge the light

Working time is less than 12hours

The battery is not fully charged

Make sure the lamp well connected to the charger when charging

Longer charging time

The charging points poor contact

Clean the charging points and slot

Low illuminance

Dirty lens

Clean water wash lens



Packing:
one set each gift box with 1pcs lamp + 1pcs USB +1pcs Wall charger + 1pcs Manual 30 sets/ carton

.

ZHOU CHUANG TECHNOLOGY CO., LTD is based in Shenzhen, Guangdong, China. The company was founded in 2008 to design, develop, and manufacture personal lighting solutions for underground mining using the latest LED and battery technologies.
