Product Details:
Payment & Shipping Terms:
|
| Type: | Adjustable Ball Valve Lockout | Material: | Polypropylene PP |
|---|---|---|---|
| Color: | Red,Other Colors Need To Be Customized | Usage: | Industrial, Electrical |
| Weight: | 134g | Suit For: | DN8-DN200 Ball Valve |
| Customer Logo: | Yes, Can Laser Or Print Customers Logo | Devices: | Durable Valve Loto Devices |
China High Quality Customized Adjustable Safety Ball Valve Lockout Devices
Features:
ZC-F01 Adjustable ball valve lockout
1. Made from polypropylene PP.
2. Applied Sizes:
a. ZC-F01 locks out pipes from 13mm (1/2") to 64mm (2 1/2") in diameter.
b. ZC-F02 locks out pipes from 50mm (2") to 200mm (8") in diameter.
c. Padlock locked shackle max diameter: 9mm.
d. Color: red, other colors need to be customized.
Specification:
| Item no. | Description |
| ZC-F01 | suitable for 13mm (1/2'') to 64mm (2 1/2'') pipes |
| ZC-F02 | suitable for 50mm (2") to 200mm (8") pipes |
Related Valve Lock Out:
| ZC-F01 | Small lockout locks out pipes from 13mm to 64mm in diameter | ||||||||
| ZC-F02 | Large lockout locks out pipes from 50mm to 200mm in diameter | ||||||||
| ZC-F03 | Small lockout suitable for 1/4'' to 1'' pipes in diameter | ||||||||
| ZC-F04 | Large lockout locks out pipes from 1 1/2'' to 3'' in diameter | ||||||||
| ZC-F05 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes | ||||||||
| ZC-F05A | Adjustable Ball Valve Lockout , with auxiliary parts | ||||||||
| ZC-F06 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes | ||||||||
| ZC-F06A | Adjustable Ball Valve Lockout , Suitable for DN50-DN70, with auxiliary parts | ||||||||
| ZC-F07 | Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes | ||||||||
| ZC-F08 | Adjustable Ball Valve Lockout , Suitable for DN8-DN125 ball valve | ||||||||
| ZC-F11 | Lockout suitable for 1" --- 2 1/2" valve rod | ||||||||
| ZC-F12 | Lockout suitable for 2 1/2" ---5" valve rod | ||||||||
| ZC-F13 | Lockout suitable for 5" --6 1/2" valve rod | ||||||||
| ZC-F14 | Lockout suitable for 6 1/2"---10" valve rod | ||||||||
| ZC-F15 | Lockout suitable for 10" --13" valve rod | ||||||||
| ZC-F11A | Lockout suitable for 1" --- 2 1/2" valve rod | ||||||||
| ZC-F12A | Lockout suitable for 2 1/2" ---5" valve rod | ||||||||
| ZC-F13A | Lockout suitable for 5" --6 1/2" valve rod | ||||||||
| ZC-F14A | Lockout suitable for 6 1/2"---10" valve rod | ||||||||
| ZC-F15A | Lockout suitable for 10" --13" valve rod | ||||||||
| ZC-F15P | Lockout suitable for 13" --18" valve rod | ||||||||
| ZC-F16 | Lockout suitable for 1" --- 6 1/2" valve rod | ||||||||
| ZC-F21 | Lockout suitable for 8mm-45mm valve rod | ||||||||
| ZC-F31 | For quarter-turn ball valves | ||||||||
| ZC-F32 | For 3.4 or 5-way valves | ||||||||
| ZC-F33 | Using cable attachment for gate valves | ||||||||
| ZC-F34 | For butterfly valves | ||||||||
| ZC-F35 | Universal valve lockout for most valves | ||||||||
| ZC-F41 | Lockout suitable for valve diameter under 22mm. | ||||||||
| ZC-F42 | Lockout suitable for valve diameter from 23mm to 34.9mm. | ||||||||
| ZC-F43 | Lockout suitable for valve diameter from 44mm to 53.9mm. | ||||||||
| ZC-F14 | Lockout suitable for valve diameter from 55mm to 63.5mm. | ||||||||
Usage:
1. Perform daily maintenance on the equipment, maintenance, adjustment, cleaning, checking and debugging
2. Operation under high pressure
3. The operation that needs to temporaily turn off the security system
4. Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house, Tunnel Project, Mountain-climbing,Hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine, Military, Police, Fire Fighting, Dockyard and other hazardous.

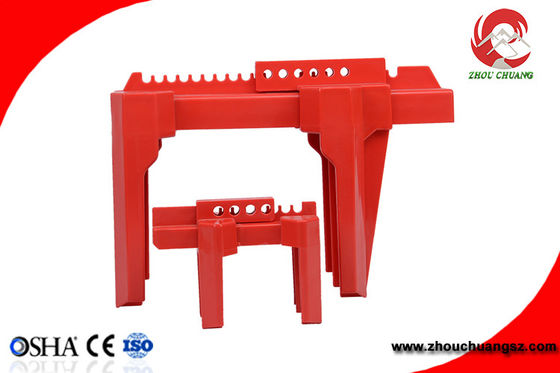

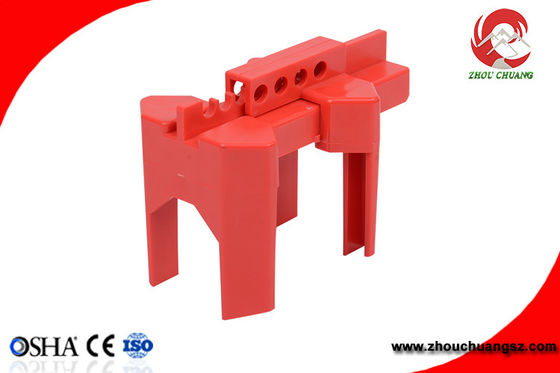

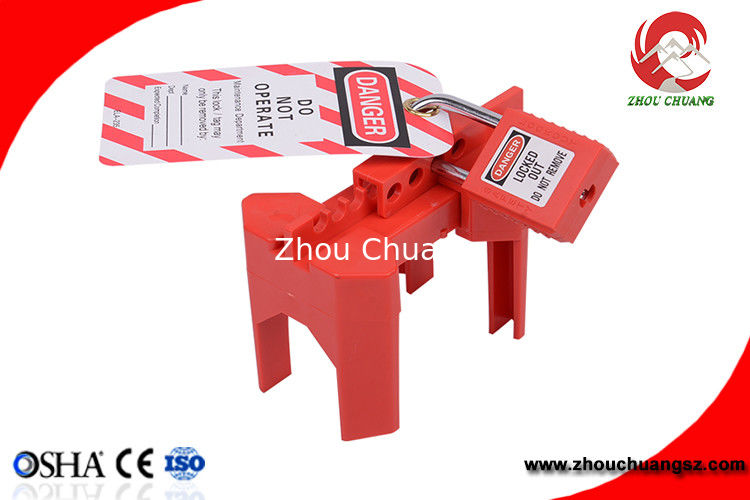

Product Picture:
