Payment & Shipping Terms:
|Type:||Safety Lockout Padlocks||Material:||Cable Shackle, ABS Body, Brass Cylinder|
|Color:||Red, Yellow, Blue, Green, Black, White, Orange, Purple||Key System:||KA, KD, MK, KAMK|
|Lock Body:||A, B, C, D, E||Usage:||Oil & Gas, Chemical, Power And Any Industrial|
|Language:||English Normal, Customers Language Is Available||OEM/ODM:||Yes, Accept ODM/OEM Orders|
|Shackle Length:||50mm, 75mm, 100mm, 150mm, 200mm. Other Length Can OEM||Sample:||Yes, Available|
|Size:||38 Mm * 45 Mm * 20 Mm||Cable:||2 Mm Stainless Steel|

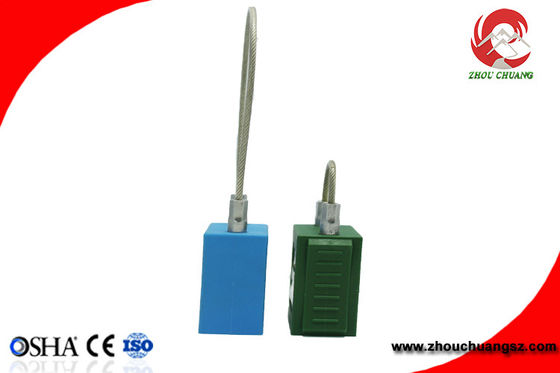

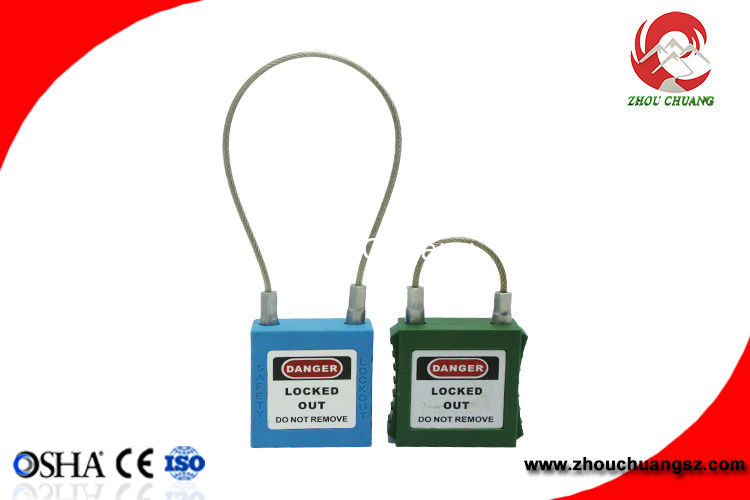

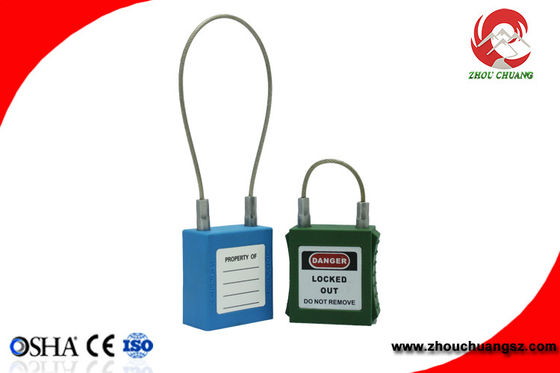

PA Body Safety Lockout Padlocks 3mm Stainless Steel Cable Shackle
1 According to the OSHA, one padlock with one key.
2 Both Chinese and English Label can be customized.
3 The lock body is made from nylon, which is anti-friction, corrosion-resistant, and good insulation
ZC-G33 steel cable shackle padlock is ABS body, stainless steel cable materials, Non-conductive lock shackle made from import Dupont Nylon. The weight is 84g, 8 colors for your choose, Standard cable size thickness 3.2mm, length 159mm, Customized size is available.
Specially designed for Lockout/Tagout, padlock bodies and keys can be numbered and recorded.
In line with regulations of OSHA1910.147.
Resistance of chemical, extreme temperatures and UV rays
Different key charting system, aliked keys, differ keys and master keys available. Provide with labels and laser printing if necessary.
Laser printing and logo engraving available if required.
|Model No||Description ot the materials and colors|
|ZC-G31||stainless steel cable shackle, red|
|ZC-G32||stainless steel cable shackle, yellow|
|ZC-G33||stainless steel cable shackle, blue|
|ZC-G34||stainless steel cable shackle, green|
|ZC-G35||stainless steel cable shackle, black|
|ZC-G36||stainless steel cable shackle, white|
|ZC-G37||stainless steel cable shackle, orange|
|ZC-G38||stainless steel cable shackle, gray|
Different key system(KD, KA, MK, KAMK)
1. Keyed Differ System (KD): Each padlock is keyed differently, supplied with 2 keys per lock. 20000 pcs individual padlocks available .
2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.
3. Differ & Master Key System (MK): Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks.
4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Our Safety Lockouts ad Padlocks are widely used in chemical, electrical, automobile industry etc.
Samples are avaliable for Testing and Market Test.
Warranty of Products
Shenzhen Zhou Chuang provides warranty against defects in materials and workmanship, We strictly control every production process, the product provides 6 tests before leaving factory.
Guides and After-service Consultancy
Shenzhen Zhou Chuang Team will offer these guides below
A .Need an Accessory?
C.How to solve some quality problem?
Hours After-service consultancy just for you and to make your problems to solve easily.
OEM service of Shenzhen Zhou Chuang is strictly based on the ISO9001 ISO14001 quality assurance system.The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, Purchasing,production&QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 9 years.
Application LOCKOUT/TAGOUT - 8 Steps
1. Learn Well How to Use the Equipment
The authorized employee shall know well the power supply equipment's position, performance and how to Control the power source. LOCKOUT/TAGOUT procedure also will present which power source, switch need lockout, And please comply with the LOCKOUT/TAGOUT procedure on devices
2. Notify Personnel
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoidr error operating acceidents
3. Shutdown Equipment
Power switch off, Or in a state of grounding, and apply TAGOUT to warn others
4. De-Energize and apply LOTO devices
Use LOTO for hazardous power source, e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve
5. Release Stored Energy
Must release stored energy before maintaining, the release stored energy is hidden, may cause personal injury In the case of unknown, the equipment start up suddenly
6. Verify Zero Energy State
In any case, in the event of the change of LOTO, it must be assured that the device is at zero energy state before work resumes. This step must be LOTO by authorized person, the verification results of other employee are regarded as invalid
7. Restoring the LOTO devices
Please restoring the LOTO devices immediately after testing, if the equipment for testing and removed the LOTO devices for equipment testing.
8. Remove LOTO Devices
Work Completed, Before remove LOTO devices, please ensure nobody around the machines or ewuipment, and notify Relevant person this equipment will be re-startup. Only authorized employee can remove LOTO devices.
