Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers

China Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers supplier
Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers supplier Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers supplier Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers supplier

Large Image :  Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers

Product Details:

Place of Origin: ShenZhen, China
Brand Name: Zhou Chuang
Certification: OSAH, CE, ISO
Model Number: ZC-D16

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Can be negotiated
Packaging Details: 10pcs / box, 400pcs / carton
Delivery Time: 5 - 7 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000pcs / month
Contact Now
Detailed Product Description
Material: Nylon PA Color: Red
Weight: 16g OEM: Yes
Sample: Provide Package: 10pcs In A Safety Plastic Box
Type: Circuit Breaker Fits Switches: 16.5mm Wide X 11.6mm Thick (usually Up To 277 Volt)

Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers

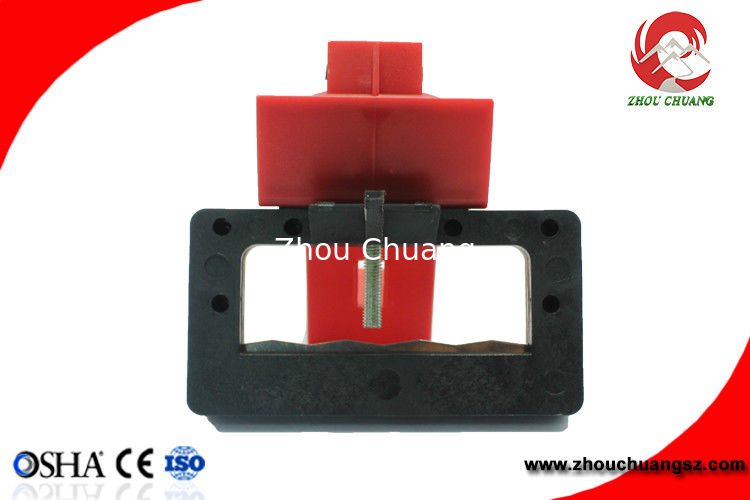

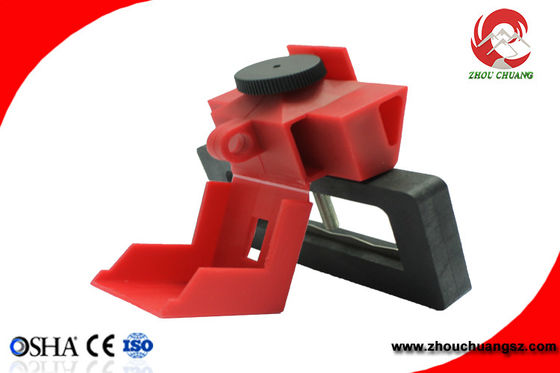

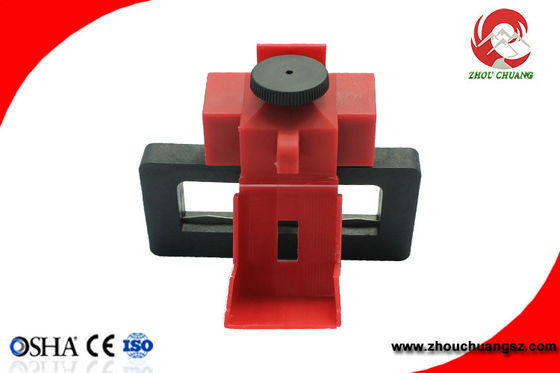

Clamp - on breaker Lockout
a. Material: rugged polypropylene and impact modified nylon PA.
b. Can use in all kinds of middle type built - in trip moulded case circuit breaker lockout.
c. Use thumbscrew to clamp lockout securely onto switch tongue,then pull cover and lock in place to prevent clamp from being loosened.
d. The lockouts can take padlock with a shackle diameter up to 7mm.
e. New blade design provides tighter grip with less torque on thumb screw.
f. Can slide long clamp plate to ensure lock out breaker.
g. Size , color, material, logo can customized.



Part Code

Description

Weight

Package

ZC-D14

120V-277V

16g

10pcs/box

ZC-D15

480-600V

46g

8pcs/box

ZC-D16

480-600V

92g

2pcs/box


ZC-D14 Fits switches 16.5mm wide x 11.6mm thick (usually up to 277 Volt)
ZC-D15 Fits switches 41.2mm wide x 13.9mm thick (usually 480/600 Volt)
ZC-D16 Fits oversized switches 63.5mm wide x 22.2mm thick (usually 480/600 Volt)

Lockout&Tagout with Safety Padlock
Clamp-on Breaker Lockout Assembly Instructions

This range of "no hole" circuit breaker lockouts are ideal for breakers that do not have any built in locking facility, the unique design, with thumb wheel operation clasps onto the switch providing secure locking protection - available in 3 sizes. Can be used with lockout cleats below for hard to lock longer sliding switches and switches with large angular rotation.

Related Electrical Lockout in differnt Material, Size


Model NoDetails
ZC-D01Miniature Circuit Breaker Lockout, Pin Out Standard
ZC-D02Miniature Circuit Breaker Lockout, Pin In Standard
ZC-D03Miniature Circuit Breaker Lockout, Tie Bar Lockout
ZC-D04Miniature Circuit Breaker Lockout, Pin Out Standard
ZC-D10Universal Miniature Breaker Lockout, Multi-funcational MCB lockout
ZC-D11Clamp-on Breaker Lockout, 120-277V 15*13*137.5px
ZC-D12Clamp-On Breaker Lockout , 480-600V 25.5*17*225px
ZC-D13Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px
ZC-D06Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm
ZC-D07Moulded Case Circuit Breaker Lockout, 125mm*63mm*40mm
ZC-D21Snap-On Breaker Lockout , 120V, 55mm*9mm*21mm
ZC-D31Plug Lockout , 110V,220V,550V
ZC-D41Plug Lockout , 110V,220V,550V
ZC-D51Emergency Stop Lockout , 22mm
ZC-D52Emergency Stop Lockout , 30mm
ZC-PM01Penumatic Quick-disconnect Lockout, Fitted with 6.4mm, 9.5mm & 12.7mm screwed joint
ZC-PM11Air Source Lockout, Available for 8-45mm vales
ZC-PM21Cylinder Tank Lockout,
ZC-PM31

Gas Cylinder Lockout


Delivery detail:

According to your situation, you can choose different modes of transport, such as sea freight, Air freight, Express


Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers
Electrical Circuit Breaker Lockout Can lock handle width ≤7mm Circuit breakers
Packing &Delivery
ZC-G68 Steel Shackle Painted Coating Body Aluminum Padlock In Metal Crafts
We can customized the package for our customer,any requirements welcome to tell us.
FAQ
1. If you couldn’t find the exact product you want, never mind, just contact us and tell your requirements, we will arrange the moulds and manufacture for you.
2. No minimum order quantity required
3. Many products are available from stock with the next several days.
4. If required, goods can be collected from our factory directly to your customers.
5. We also support OEM manufacturing, with any given order quantity.
