Product Details:
Payment & Shipping Terms:
|
| Type: | Safety Xenoy Padlock | Material: | Steel Shackle, ABS Body, Brass Cylinder |
|---|---|---|---|
| Color: | Red, Yellow, Blue, Green, Black, White, Orange, Purple | Key System: | KA, KD, MK, KAMK |
| Lock Body: | A, B, C, D, E | Usage: | Oil & Gas, Chemical, Power And Any Industrial |
| Language: | English Normal, Customers Language Is Available | OEM/ODM: | Yes, Accept ODM/OEM Orders |
| Shackle Length: | 76mm | Shackle Diameter: | 6mm |

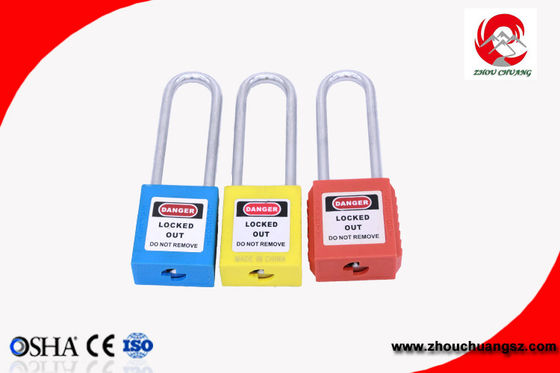

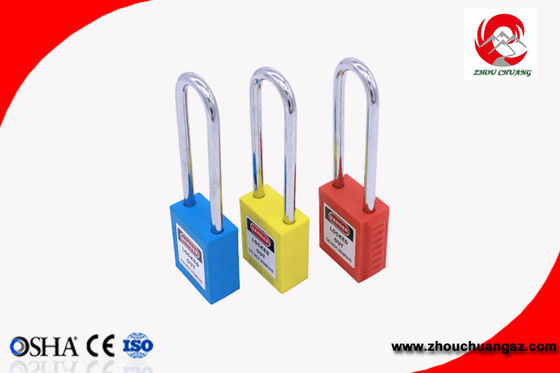

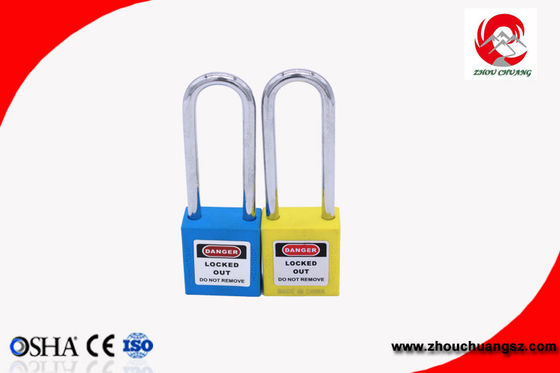

Long Steel Shackle Xenoy Safety Lockout Padlocks with UV stable PVC tag
Product Parameter
Brand: Zhou Chuang
Part code: ZC-G21L~ZC-G28L
Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple and Gray
Material: Steel & Nylon PA
Shackle height: 76mm
Shackle dia:6mm
Weight: 126g
Detail Display
High quality Steel Shackle
High Quality Nylon Lock Body(fill in the back side with the name of the manager and other important information)
skid Resistant: convenient for workers to work. (the new body, E type is the most skid resistant)
6pins cylinder: ensure the safety and further less the situation of repeating
Key Retaining: ensure the key not to be lost.
Specification
| Mold No. | Deacription | Lock shackle materials | Key System | Remarks |
| ZC-G21L | 76mm long shackle,red | steel |
KD |
ANTIMAGNETIC AND |
| ZC-G22L | 76mm long shackle,yellow | |||
| ZC-G23L | 76mm long shackle,blue | |||
| ZC-G24L | 76mm long shackle,green | |||
| ZC-G25L | 76mm long shackle,black | |||
| ZC-G26L | 76mm long shackle,white | |||
| ZC-G27L | 76mm long shackle,orange | |||
| ZC-G28L | 76mm long shackle,purple |
Key Systems
1. Keyed Differ System (KD): Each padlock is keyed differently, supplied with 2 keys per lock. 20000 pcs individual padlocks available .
2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.
3. Differ & Master Key System (MK): Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks.
4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Product Application
Our Safety Lockouts ad Padlocks are widely used in chemical, electrical, automobile industry etc.
Product Pictures
Our service
Samples
Samples are avaliable for Testing and Market Test.
Warranty of Products
Shenzhen Zhou Chuang provides warranty against defects in materials and workmanship, We strictly control every production process, the product provides 6 tests before leaving factory.
Guides and After-service Consultancy
Shenzhen Zhou Chuang Team will offer these guides below
A .Need an Accessory?
B.Products Repair?
C.How to solve some quality problem?
Hours After-service consultancy just for you and to make your problems to solve easily.
OEM service
OEM service of Shenzhen Zhou Chuang is strictly based on the ISO9001 ISO14001 quality assurance system.The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, Purchasing,production&QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 9 years.
Applications
1.Learn well how to use the equipment.
The quthorized employee shall know well the power supply equipment's position.performance and how to control the power source LOCKOUT/TAGOUT procedure also will present which power source,switch need lockout.And please comply with the LOCKOUT/TAOUT procedure on devices
2.Notify personnel.
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoid error operating accidents.
3.Shutdown equipment
Power switch off,or in a state of grounding,and apply TAGOUT to warn others.
4.De-Energize and lock power source.
Use LOCKOUT/TAGOUT for hazardous power source,e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve.
5.Release stored energy.
Must release stored energy before maintaining.The release stored energy is hidden may cause personal injury in the case of unknown the equipment starts up suddenly.
6.Verify zero energy state
In any case,in the event of the change of LOCKOUT/TAGOUT,it must be assured that the device is at zero energy state before work resumes.This step must be operated by authorized person,the verification results of other employee are regarded as invalid.
7.Restor the LOCKOUT/TAGOUT devices
Please restoring the LOCKOUT/TAGOUT devices immediately after testing,If it needs to remove the LOCKOUT/TAGOUT devices for equipment testing.
8.Remove LOCKOUT/TAGOUT devices
Work completed,before remove LOCKOUT/TAGOUT devices,please ensure nobody around the machines or equipment and notify relevant persons this equipment will re-startup.Only authorized employees can remove LOCKOUT/TAGOUT devices.
Packing ＆Delivery
10Pcs/Box 20Pcs/Carton 20kg/Carton
We can customized the package for our customer,any requirements welcome to tell us.
FAQ
1. If you couldn’t find the exact product you want, never mind, just contact us and tell your requirements, we will arrange the moulds and manufacture for you.
2. No minimum order quantity required
3. Many products are available from stock with the next several days.
4. If required, goods can be collected from our factory directly to your customers.
5. We also support OEM manufacturing, with any given order quantity.
