Product Details:
Payment & Shipping Terms:
|
Material: | Tough Impact Nylon | Used For: | For Locking Circuit Breaker |
---|---|---|---|
Color: | Blue | Logo On: | Stick & Print On Products |
Application: | Used In Various Environments | Specification: | 50*25*23mm |
Features:
1. Lock out 1 - 4 pole circuit breakers
2. Made from durable plastic
3. Dimensions: 51x25x23mm wide
4. 8 mm padlock hole - max clamping 13mm.
The Safety electrical lockout we can Supply:
circuit breaker | Model No. | Description |
Easy-to-Use breaker lockout | ZC--D05 | Can lock handle width<=12mm medium size moulded case circuit breakers |
ZC--D06 | Can lock two-pole, three-pole, four pole miniature circuit breakers | |
ZC--D07 | Can lock handle width<=7.7mm single-pole miniature circuit breakers | |
ZC--D08-1 | Can lock handle width<=5mm small and medium size moulded case circuit breakers | |
ZC--D08-2 | Can lock handle width<=5mm small and medium size moulded case circuit breakers | |
ZC--D09 | Can lock big circuit breakers | |
clamp-on breaker lockout | ZC-D14 | Can lock handle width<=18mm circuit breakers |
ZC-D15 | Can lock handle width<=42mm circuit breakers | |
Ultra large size clamp-on breaker lockout | ZC-D16 | Can lock handle width<=72mm |
Specific electrial lockout | ZC-D10 | can lock out with padlock shackle diameter<=7mm |
ZC-D11 | can lock out with padlock shackle diameter<=7mm | |
ZC-D12 | can lock out with padlock shackle diameter<=7mm | |
ZC-D13 | can lock out with padlock shackle diameter<=7mm | |
safety group breaker lockout | ZC-D17 | Can lock out with padlock shackle diameter<=7mm |
Snap-on breaker lockout | ZC-D17 | Can lock out with padlock shackle diameter<=7mm |
multi-functional breaker lock out | ZC-D22 | Can lock out with padlock shackle diameter<=7mm |
ZC-D23 | Can lock out with padlock shackle diameter<=7mm | |
ZC-D23W | lock body buttom no foot design, can lock out with padlock shackle diameter<=7mm | |
Ultra large size circuit breaker lockout | ZC-D24 | Can lock out with padlock shackle diameter<=7mm |
ZC-D24L | Can lock out longer closing stroke circuit breakers, available padlock shackle diameter<=7mm | |
Electric air hole | ZC-D25 | Lock all kinds of non-standardised allotypes, handle holes etc. |
Usage of Safety Circuit Breaker Lockout:
Safety lockout hasps allow multiple padlocks to be used when isolating one energy source.
The lockout hasp is placed through the isolating point and each person carrying out maintenance or service work attaches and locks in place their own unique individually keyed padlock through the lockout hasp.
This ensures each worker's safety as the energy can not be restored until thework is finished and all padlocks have been removed.

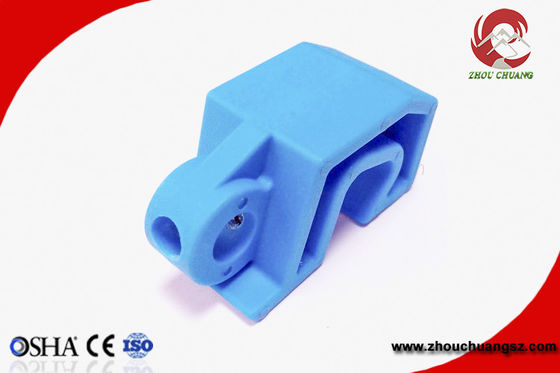

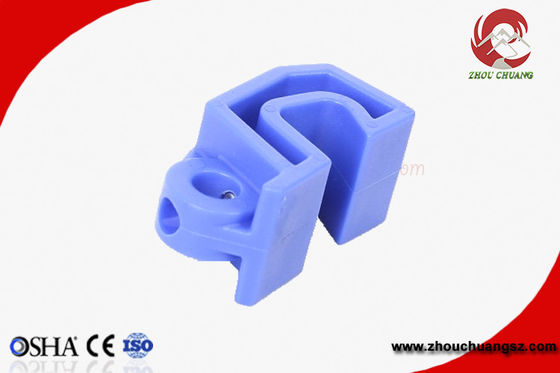

Product Pictures:
How to use
