Home ProductsCircuit Breaker Lockout

Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout

Good supplier, good service, and with many kinds of types, save much time for orders.

—— Ahmed

Best prices! Help me to open our local market, such as provide the clear pictures to establish our website, video and latest catelog. Great business.

—— Mohsen Valdez

Our clients are very satisfy the new design, and thanks for your full support for customizing new items to suitable the machine.

—— Diegle Karime

I'm Online Chat Now

Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout

China Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout supplier
Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout supplier Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout supplier Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout supplier

Large Image :  Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhou Chuang
Certification: CE, OSHA
Model Number: ZC-D17

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 10pcs / box, 400pcs / carton or according to your requirements
Delivery Time: sample order at once, bulk order within 15-20 working days
Payment Terms: T/T or Western Union in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment
Supply Ability: 10000 piece in one week
Contact Now
Detailed Product Description
Type: Safety Group Breaker Lock Out Material: Nylon PA
Color: Red And Yellow,green Main Rod Lenth: 19cm
Customer Logo: Printing Customers Logo Or Laser Logo Sample: Have In Stock, Free Sample Is Available
Usage: Electrical Breaker Lockout Padlock: Available 14 Padlocks



Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout

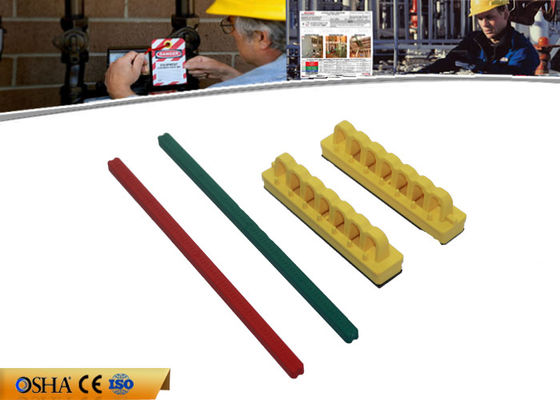

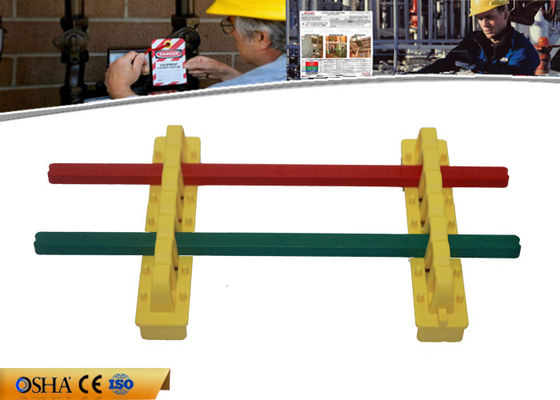

1. Safety group breaker lockout

a. Material: Made from modified industrial plastic nylon PA.

b. 3M tape on the back can permanently fasten on the switchboard, no need to drill hole.

c. Can lock ultra large irregularly shape switch, main rod length is 19cm.

d. Red resistance rod means the switch is closed, green resistancerod means the switch is open.

e. Fit most existing types of European and Asian circuit breakers.

f. Easily installed with the aid of a push button.

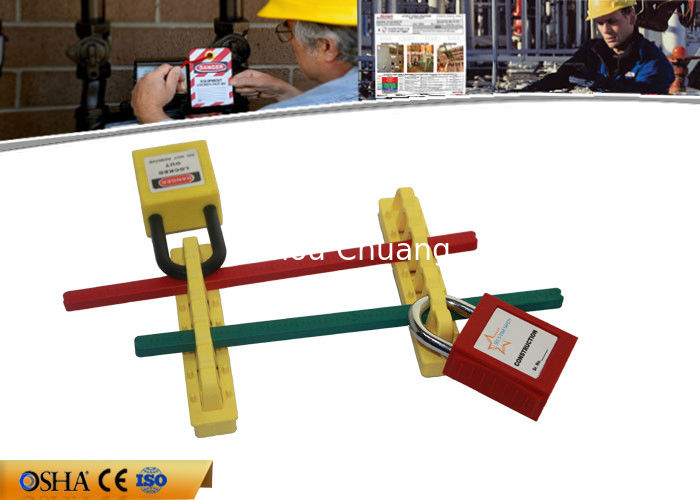

h. Recommended to use in combination with a padlock for added safety.

i. Can take padlocks with a shackle diameter up to 7mm.

m. Available for single and multi-pole breakers.
n. We have tested 750 types of circuit breakers and our MCB lockouts fit most of all.



2.Product Description:

Model No. Description
ZC-D17 Can lock out with padlock shackle diameter<=7



Material: Industrial Plastic Nylon PA Main Rod Length: 19m
Type: Circuit Breaker Description: Double Pole
OEM: Yes Sample: Provide



Safety Group Breaker Lock Out , Available 14 Padlocks Electrical Breaker Lockout



3.Circuit Breaker Lockout Range:

Model No Details
ZC-D01 Miniature Circuit Breaker Lockout, Pin Out Standard
ZC-D02 Miniature Circuit Breaker Lockout, Pin In Standard
ZC-D03 Miniature Circuit Breaker Lockout, Tie Bar Lockout
ZC-D04 Miniature Circuit Breaker Lockout, Pin Out Standard
ZC-D10 Universal Miniature Breaker Lockout, Multi-funcational MCB lockout
ZC-D11 Clamp-on Breaker Lockout, 120-277V 15*13*137.5px
ZC-D12 Clamp-On Breaker Lockout , 480-600V 25.5*17*225px
ZC-D13 Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px
ZC-D06 Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm
ZC-D07 Moulded Case Circuit Breaker Lockout, 125mm*63mm*40mm
ZC-D21 Snap-On Breaker Lockout , 120V, 55mm*9mm*21mm
ZC-D31 Plug Lockout , 110V,220V,550V
ZC-D41 Plug Lockout , 110V,220V,550V
ZC-D51 Emergency Stop Lockout , 22mm
ZC-D52 Emergency Stop Lockout , 30mm




Our range of MCB lockouts and electrical lockouts are designed to fit most electrical equipments, isolating these electrical equipments from unauthorised operations and ensuring each worker's safety until work is finished and the lockouts are removed.

4.Payment Terms
T/T,Western Union,paypal.



After-Sale Service:

our products have one-year warranty.

If the products contains a defect or problem beyond human control within the one-year warranty period, please send the defective products to us and we will repair the products for you, free of charge.



Why Use Lockout/Tag out?
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today's most serious issues. LOCKOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT procedures.



Application
Safety Lockout are widely used in Chemical, Electrical, Automobile industry and so on.


5.Our Service
a) For all your inquires about us or our products, we will reply you in details within 24 hours.
b) We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language.
c) We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
d) Discounts are offered based on order quantities

6.Company Information

Shen Zhen Zhou Chuang Technology Co.,Ltd is a professional manufacturing company based in Shenzhen, safetylockout/LOTO and have been supplying to different parts of the world for about more than 8years.
