Product Details:
Payment & Shipping Terms:
|
Type: | Xenoy Safety Lockout Padlocks | Material: | Steel Shackle, ABS Body, Brass Cylinder |
---|---|---|---|
Color: | Red, Yellow, Blue, Green, Black, White, Orange, Purple | Key System: | KA, KD, MK, KAMK |
Lock Body: | A, B, C, D, E | Usage: | Oil & Gas, Chemical, Power And Any Industrial |
Language: | English Normal, Customers Language Is Available | OEM/ODM: | Yes, Accept ODM/OEM Orders |
Shackle Length: | 38mm | Lock Body Length: | 75mm Long Body |

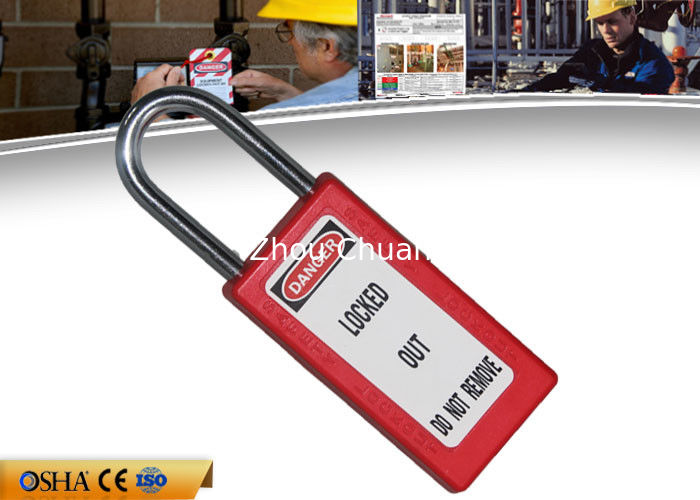

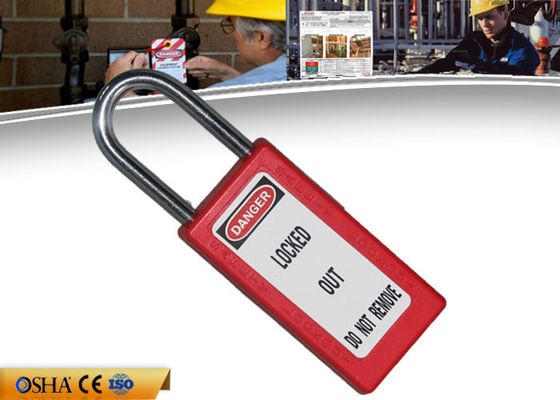

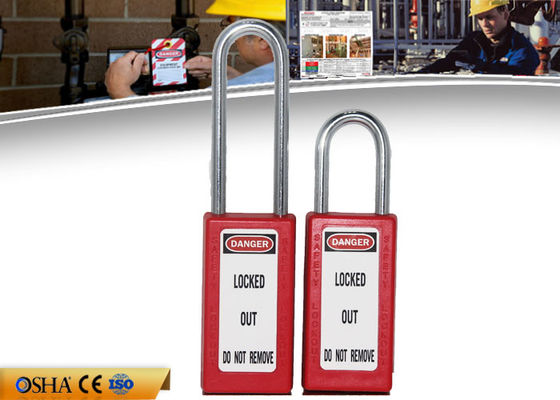

Xenoy Safety Lockout Padlocks 75mm Long Body Steel Shackle Light Weightht
Product Parameter
Brand: Zhou Chuang
Part code: ZC-G81
Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple and Gray
Material: Steel & Nylon PA
Shackle height: 38mm
Lock body length: 75mm
Shackle dia:4mm
Weight: 100g
Detail Display
a) Durable, light weight with non-conductive Xenoy lock bodies.
b) High security 10 pin cylinder lock, upto 100,000 different locking mechanisms.
c) Key retaining feature ensures the padlocks are not left unlocked.
d) All different colors available.
e) Standard labels on front and back.
f) Can be engraved with customers' logo if required.
e) Can make luminous PVC tag
KD:Each padlock is keyed differently,the key for one lock should not open another.
KA:Each padlock is keyed the same,1key will open all padlock in each group.
MK:Each padlock is keyed diffently,A master key will override and open any of these padlock.
KAMK:Each padlock is keyed the same in one group.A master key will override and open all groups of Alike keyed.
Specification
Material: | Xenoy Lock Bodies | Description: | Durable, Light Weight With Non-conductive Xenoy Lock Bodies |
---|---|---|---|
Size: | 38mm | Logo: | Yes |
Price Terms: | FOB SHENZHEN | Color: | All Color Available |
Mold No. | Deacription | Lock shackle materials | Key System | Remarks |
ZC-G81 | 75mm lock body length,red | stainless steel |
KD KA MK KAMK |
ANTIMAGNETIC AND EXPLOSION PROOF, USUALLY USED IN ELECTRICAL INDUSTRY |
ZC-G82 | 75mm lock body length,yellow | |||
ZC-G83 | 75mm lock body length,blue | |||
ZC-G84 | 75mm lock body length,green | |||
ZC-G85 | 75mm lock body length,black | |||
ZC-G86 | 75mm lock body length,white | |||
ZC-G87 | 75mm lock body length,orange | |||
ZC-G88 | 75mm lock body length,purple |
What is LOCKOUT / TAGOUT
A Lockout is a method of keeping equipment from being set in motion and endangering workers.
1. A Disconnect switch, circuit breaker, valve or other energy isolation mechanism is put in the safe or off position.
2. A Safety device is placed over the energy-isolating mechanism to hold it in the safe position. This is where Godrej Safety Lockout products are essential.
3. A Padlock is attached so that the equipment cannot be energized.
In a Tagout, the energy-isolation device is placed in the safe position and a written is attached to it. All lockout and tagout materials are supplied by the employer. Each device must be:
Durable to withstand wear.
Substantial, so it will not come off easily.
Capable of identifying the person who applied it.
Many Companies issue each worker authorized to apply Lockout / Tagout with their own personal padlock imprinted with his / her name.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Product Application
Our Safety Lockouts ad Padlocks are widely used in chemical, electrical, automobile industry etc.
Product Pictures
Our service
Samples
Samples are avaliable for Testing and Market Test.
Warranty of Products
Shenzhen Zhou Chuang provides warranty against defects in materials and workmanship, We strictly control every production process, the product provides 6 tests before leaving factory.
Guides and After-service Consultancy
Shenzhen Zhou Chuang Team will offer these guides below
A .Need an Accessory?
B.Products Repair?
C.How to solve some quality problem?
Hours After-service consultancy just for you and to make your problems to solve easily.
OEM service
OEM service of Shenzhen Zhou Chuang is strictly based on the ISO9001 ISO14001 quality assurance system.The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, Purchasing,production&QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 9 years.
