|Type:||Aluminum Safety Lockout Padlocks||Material:||Steel Shackle, Aluminum|
|Color:||Red, Yellow, Blue, Green, Black, White, Orange, Purple||Key System:||KA, KD, MK, KAMK|
|Usage:||Oil & Gas, Chemical, Power And Any Industrial||OEM, ODM:||Yes, Available|
|Language:||English Normal, Customers Language Is Available||Logo:||Customers Logo Is Available|
|Sample:||Free Sample Is Available||Colcor:||Colorful|
|Surface:||Stable Paint Coating Surface|

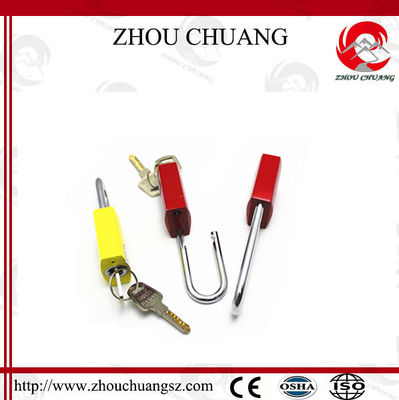

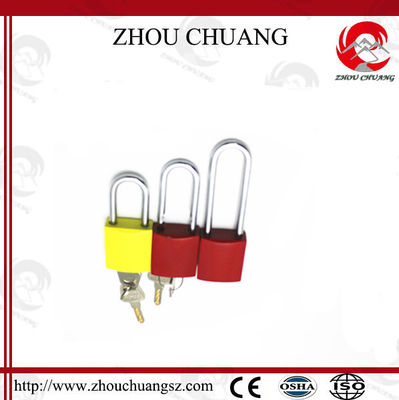

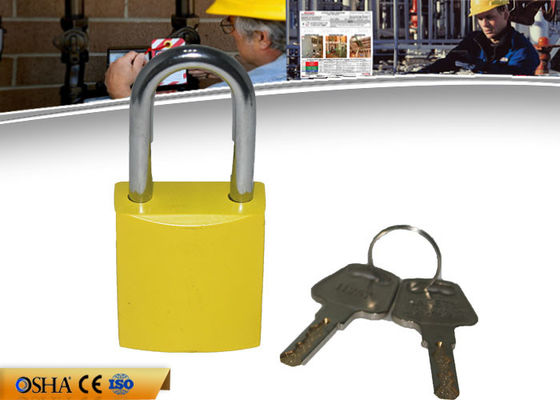

Colorful Aluminum Safety Lockout Padlocks Stable Paint Coating Surface
1. Lock body designed by one-piece.Internatinal Standara die casting aluninum,high strength,stable paint coating surface,anti-corrosion lock shackle.
2. .Automatically pop-up design shackle.
3. Key retaining-ensure that padlock is not accidentally left unlocked.
4. Shackle size can be customized.
5. Customized logo is accepted. Can OEM / ODM.
6. Weight: 170g.
7. 8 Color or you choose. We also accept customized.
8. Size: 40mm ( lock body width) * 50mm (lock body height) * 38mm ( shackle height), The shackle thickness 6mm, shackle width: 20mm.
9. Use in industrial,chemical industrial and so on.
|Model No.||Description||Shackle materials||Key system||Remarks|
|model 'S' means 304 stainless steel shackle, model 'L' means long shackle. eg. red padlock with 304 shackle: ZC-A11S, with long shackle: ZC-A11L.|
Different Key System (KA, KD, MK, KAMK):
KA: Each padlock is keyed the same, one key will open all padlock in each group.
KD: Each padlock is keyed differently, the key for 1 lock should not open another.
MK: Each padlock is keyed differently, A master ker will override and open any of these padlock.
KAMK: Each padlock is keyed the same in one group, A master key will override and open all groups of alike keyed.
|Model No.||Lock body material||Shackle material||Size|
|ZC-G61||Aluminum||Steel||40mm(Lock body width) * 45mm(Lock body height) * 38mm(shackle height), Shackle thickness: 6mm.|
1. Keyed Differ System (KD): Each padlock is keyed differently, supplied with 2 keys per lock. 20000 pcs individual padlocks available .
2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.
3. Differ & Master Key System (MK): Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks.
4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.
Application LOCKOUT/TAGOUT - 8 Steps
1. Learn Well How to Use the Equipment
The authorized employee shall know well the power supply equipment's position, performance and how to Control the power source. LOCKOUT/TAGOUT procedure also will present which power source, switch need lockout, And please comply with the LOCKOUT/TAGOUT procedure on devices
2. Notify Personnel
Notify all relative operators before setting LOCKOUT/TAGOUT devices to avoidr error operating acceidents
3. Shutdown Equipment
Power switch off, Or in a state of grounding, and apply TAGOUT to warn others
4. De-Energize and apply LOTO devices
Use LOTO for hazardous power source, e.g. use circuit breaker lockout to lock the circuit breaker or valve lockout to lock valve
5. Release Stored Energy
Must release stored energy before maintaining, the release stored energy is hidden, may cause personal injury In the case of unknown, the equipment start up suddenly
6. Verify Zero Energy State
In any case, in the event of the change of LOTO, it must be assured that the device is at zero energy state before work resumes. This step must be LOTO by authorized person, the verification results of other employee are regarded as invalid
7. Restoring the LOTO devices
Please restoring the LOTO devices immediately after testing, if the equipment for testing and removed the LOTO devices for equipment testing.
8. Remove LOTO Devices
Work Completed, Before remove LOTO devices, please ensure nobody around the machines or ewuipment, and notify Relevant person this equipment will be re-startup. Only authorized employee can remove LOTO devices.
We padlock cover:
Long shackle xenoy safety padlock
Steel cable shackle padlock
Mini xenoy safety padlock
Thin shackle xenoy padlock
Long body padlock
safety jacket padlock
Specification Description of our product:
1. High quality.
2. Competitive price
3. Timely delivery
4. Good service
We are willing to supply sample to customer test the products quality, the sample is free, but shipping cost buyer afford.
About Quotation Validity Date:
Our company quotation validity time is 30 days from the quotation day.
About Payment Term:
Our company accept T/T, Western Union, MoneyGram, D/P and another payment term.
About Production Time:
Different products and quantity have different production time.
About the After-Sales Service:
Our products have 0ne year warranty period.
Our company specialize in manufature lockout and tagout for more than 7 years. Our products are exported to North America, South America, Middle East, India, Europe, Africa and so on.
Our Safety Lockouts and Padlocks are widely used in chemical, electrical, automobile industry etc.
Tag: Lock Out Padlocks,Lock Out Hasp
