ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey

China ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey supplier
ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey supplier ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey supplier ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey supplier

Large Image :  ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhou Chuang
Certification: CE, OSHA
Model Number: ZC-G101

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 1 pcs padlock and key in a colorful box, 10pcs in a box, 200pcs in a carton
Delivery Time: sample order at once, bulk order within 15-20 working days
Payment Terms: 100% T/T or Western Union Payment Before Delivery The Goods.
Supply Ability: 100000 piece in one month
Contact Now
Detailed Product Description
Type: ABS Xenoy Safety Lockout Padlocks Material: Steel Shackle, ABS Body, Brass Cylinder
Color: Red, Key System: KA, KD, MK, KAMK, GMK
Lock Body: A, B, C, D, E Usage: Oil & Gas, Chemical, Power And Any Industrial
OEM, ODM: Yes, Available Language: English Normal, Customers Language Is Available
Sample: Free Sample Is Available MOQ: 1pcs



ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey



1.Description for Safety Lockout Padlock

a) Durable PA body, withstand temperature from -57ºC to 177ºC and impact resistance
b) Corrosion resistance and UV stable.
c) Can make luminous PVC tag. Accept customized logo


High quality Steel Shackle
High Quality Nylon Lock Body(fill in the back side with the name of the manager and other important information)
Skid Resistant: convenient for workers to work. (the new body, E type is the most skid resistant)
6pins cylinder: ensure the safety and further less the situation of repeating
Key Retaining: ensure the key not to be lost.



Technical Specification



type ZC-G101 Description: Mini Steel Shackle ABS Body Xenoy Padlock With Good Price
Color: All Color Available Customize: Yes
OEM: Yes Logo: Laser or print according to your request
Certification: CE,OSHA,ISO Size:

20mm





Model No. Description Lock shackle Key system
ZC-G101 Minin shackle(red) steel(A3) shackle
height 20mm
KD KA MK KAMK
ZC-G102 Minin shackle(yellow)
ZC-G103 Minin shackle(blue)
ZC-G104 Minin shackle(green)
ZC-G105 Minin shackle(black)
ZC-G106 Minin shackle(white)
ZC-G107 Minin shackle(orange)
ZC-G108 Minin shackle(purple)



Model No. Description Lock shackle materials Shackle length Shackle diameter Body width Body length Key system
ZC-G001 short shackle(Red) Steel 25mm 6mm 38mm 45mm KA, KD, MK, KAMK, GMK
ZC-G002 short shackle(Yellow)
ZC-G003 short shackle(Blue)
ZC-G004 short shackle(Green)
ZC-G005 short shackle(Black)
ZC-G006 short shackle(White)
ZC-G007 short shackle(Orange)
ZC-G008 short shackle(Purple)



Key Systems



1. Keyed Differ System (KD): Each padlock is keyed differently, supplied with 2 keys per lock. 20000 pcs individual padlocks available .

2. Keyed Alike System (KA): Each padlock is keyed the same. 1 key will open all padlocks in each group.

3. Differ & Master Key System (MK): Each padlock is keyed differently, supplied with 2 keys per lock. A master key will override and open any of these padlocks.

4. Alike & Master Key System (KAMK): Each padlock is keyed the same in one group. A master key will override and open all groups of Alike keyed.



Safety Lock Out Padlock Body Types



A, B, C, D, E five bodies, the B and D types are most popular.



Why Use Lockout/Tag out

Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.

Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.



Product Application



Our Safety Lockouts and Padlocks are widely used in chemical, electrical, automobile industry etc.



Product Pictures

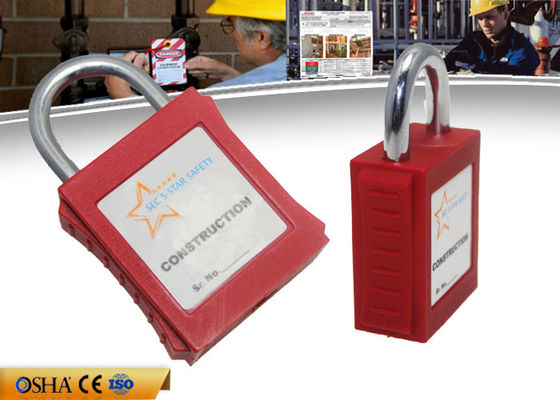

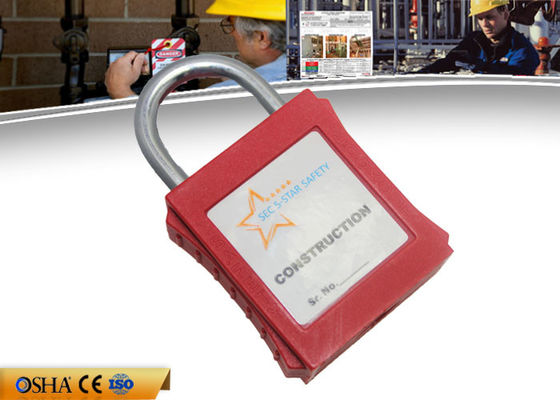

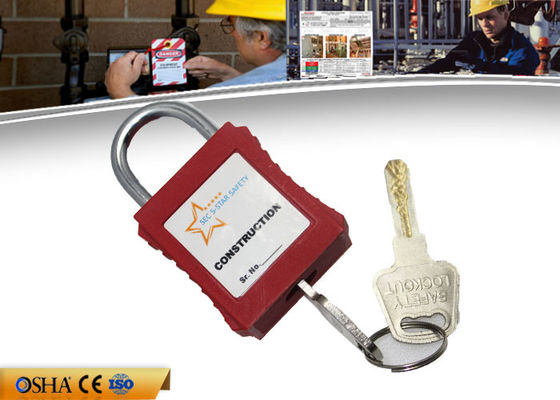

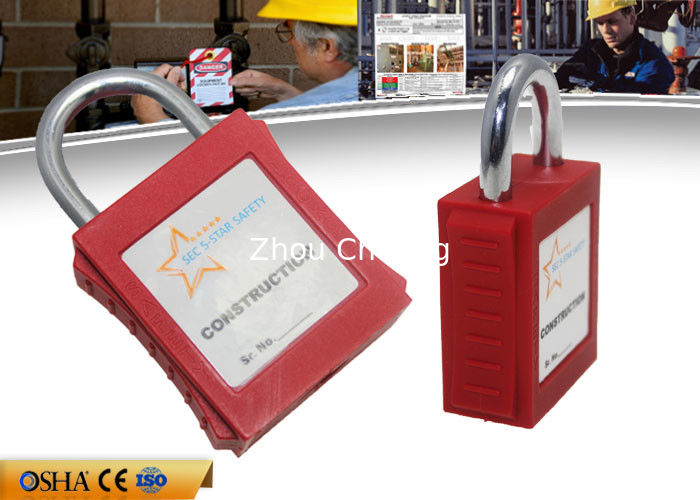

ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey

ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey

ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey





ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey

4.Our service
♣ Samples
Samples are avaliable for Testing and Market Test.
♣ Warranty of Products
Weprovides warranty against defects in materials and workmanship, We strictly control every production process, the product provides 6 tests before leaving factory.
♣ Guides and After-service Consultancy
Zhou Chuang Team will offer these guides below
A .Need an Accessory?
B.Products Repair?
C.How to solve some quality problem?
Hours After-service consultancy just for you and to make your problems to solve easily.
♣ OEM service
OEM service of Zhou Chuang is strictly based on the ISO9001 ISO14001 quality assurance system.The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, Purchasing,production&QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 9 years.



ABS Xenoy Safety Lockout Padlocks 20 Mm Mini Steel Shackle With Masterkey





Tag: Lock Out Tag Out, Safety Lockout Locks
