Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body

China Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body supplier
Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body supplier Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body supplier Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body supplier Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body supplier

Large Image :  Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Zhou Chuang
Certification: CE, OSHA
Model Number: ZC-G01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 1 pcs padlock and key in a colorful box, 10pcs in a box, 200pcs in a carton
Delivery Time: sample order at once, bulk order within 15-20 working days
Payment Terms: 100% T/T or Western Union Payment Before Delivery The Goods.
Supply Ability: 100000 piece in one month
Contact Now
Detailed Product Description
Type: Safety Lockout Padlocks Material: 53 Mm ABS Lock Body
Color: Red, Yellow, Blue, Green, Black, White, Orange, Purple Key System: KA, KD, MK, KAMK
Lock Body: A, B, C, D, E Usage: Oil & Gas, Chemical, Power And Any Industrial
Language: English Normal, Customers Language Is Available Shackle: 38 Mm Steel Lock Shackle



Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body



Product Parameter



This padlock is our new designe steel shackle padlock with GMK key system. The key length and body length longer than other padlocks.



1. Body Length: 51mm

2. Key Length: 53mm
3. Material: ABS Bodies with Steel shackle
4. Widely applied to chemical, electrical, automobile industry, etc.
5. superior temperature, chemical and corrosion resistance
6. With rewritable warning signs
7. Key Retaining Feature (When the shackle is open, the key can not be removed)
8. Laser printing and logo engraving available if required.
9. Shackle Length: 38mm



Product Details

1. Durable non-conductive PA body, withstand tempwerature from -57 °C to 177 °C and impact resistance, metal shackle with chrome plating. Non-conductive lock shackle made from impact Dupont Nylon.
2. In consistent with regulations of OSHA 1910.147.
3. Preventing chemical, extreme temperatures and UV rays.
4. Different key charting system, aliked keys, differ keys, and master keys available.
5. All colors available, with 4 different lock bodies and shackles.Laser printing available.

Safety Padlock Features


1. High security key cylinder
2. 2 keys to each lock
3. Available keyed to differ and keyed alike
4. Standard safety/owner labelling on both sides included
5. Can be engraved if required
6. Other keying systems available upon request
7. 38mm wide x 44mm bodies, vertical shackle clearance 38mm, shackle diameter 6.4mm
8. Bodies and keys stamped with key number as standard
9. 8 different colour options available for clear identification
10. Standard "Do Not Remove" label and write on property labels included front and back
11. Lock & key number records for this range can be maintained by Reece Safety upon request.





Model No.

Description Lock shackle Key system
ZC-G01 Minin shackle(red) steel(A3) shackle
height 38mm
KD KA MK KAMK
ZC-G02 Minin shackle(yellow)
ZC-G03 Minin shackle(blue)
ZC-G04 Minin shackle(green)
ZC-G05 Minin shackle(black)
ZC-G06 Minin shackle(white)
ZC-G07 Minin shackle(orange)
ZC-G08 Minin shackle(purple)



Key System



KD:Each padlock is keyed differently,the key for one lock should not open another.
KA:Each padlock is keyed the same,1key will open all padlock in each group.
MK:Each padlock is keyed diffently,A master key will override and open any of these padlock.
KAMK:Each padlock is keyed the same in one group.A master key will override and open all groups of Alike keyed.

Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body



Why Use Lockout/Tag out

Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.

Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.



Product Application



Our Safety Lockouts ad Padlocks are widely used in chemical, electrical, automobile industry etc.

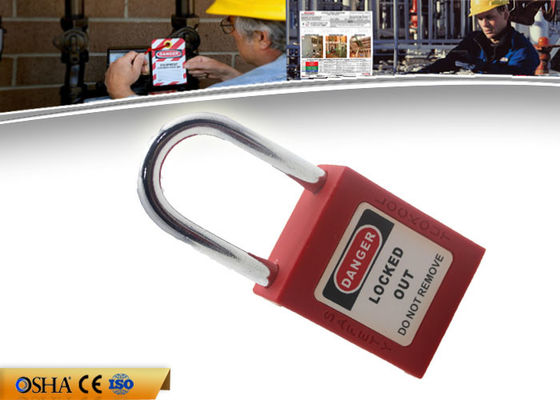

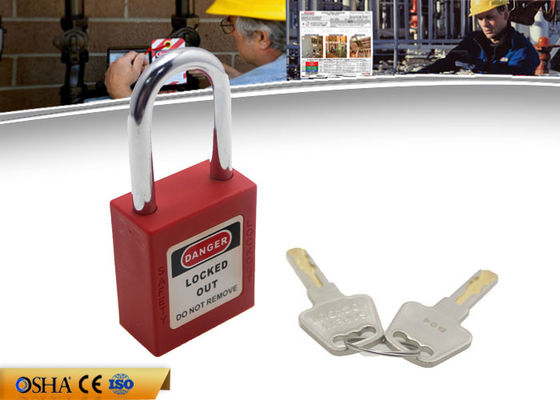

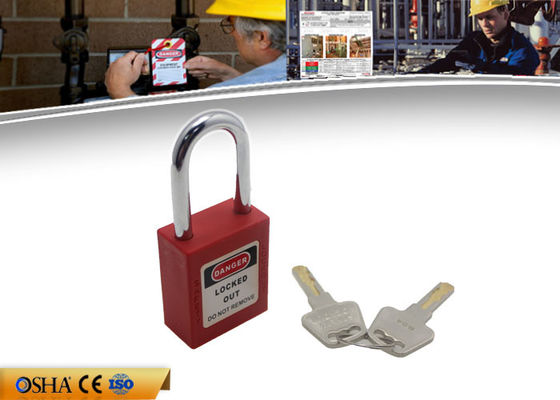

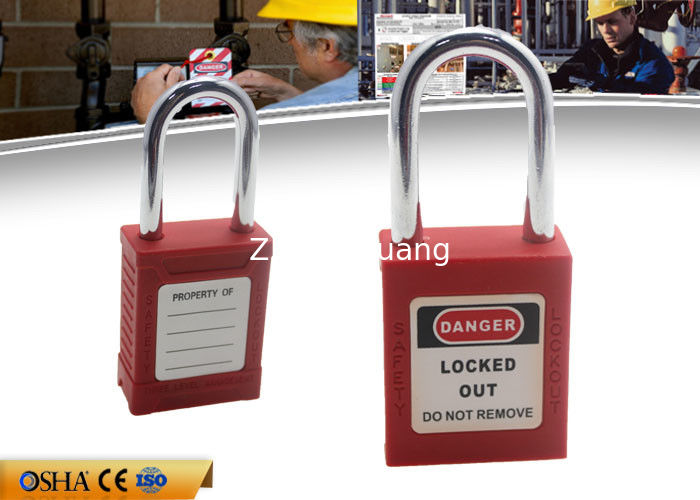

Product Pictures



Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body

Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body

Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body



Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body

Safety Lockout Padlocks 38 Mm Steel Lock Shackle 53 Mm ABS Lock Body



Guides and After-service Consultancy
Zhouchuang Team will offer these guides below
A .Need an Accessory?
B.Products Repair?
C.How to solve some quality problem?
Hours After-service consultancy just for you and to make your problems to solve easily.


OEM service
OEM service of Zhou Chuang is strictly based on the ISO9001 ISO14001 quality assurance system.The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, Purchasing,production&QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 9 years.



FAQ


Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every lock body, either by laser, or by moulds.
Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
Q: Can I have some samples before formal order?
A: Yes, we can send you some free samples for your test before your order.
Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released. For customized products, it takes longer.
Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pls contact us freely, we'll help solving the problems within 24 hours.
Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers, we'll guanartee monthly payment after good cooperationship.
Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes, we have a research & development dept., we're willing to develop everything that you demand in safety lockout industries.
Q: Do you have any office in other countries?
A: Currently we don't have, but we're discussing with some good customers. If you're willing to be our agent in any countries, pls contact us freely.





Tag: Lock Out Tag Out, Safety Lockout Locks
