| Product Name: | LED Corded Mining Lamp | Light Source: | One Main Light Two Auxiliary Llights |
|---|---|---|---|
| Brightness: | 15000lux | Batrry Capacity: | 7.8Ah |
| Weight: | 420g | Charging Ways: | Desktop Charger & USB Charger |
| Waterproof Grade: | IP68 | Usage: | Mining,oil,gas,other Speical Environment |
| Color: | Yellow+black |
KL5LM Anti explosive LED miner headlamp for miner use high brightness rechargeable
KL5LM(GL8-D / GL5-D) is a classic miner cap lamp, with a low power warning function for safety lighting. and 2 pcs auxiliary light. lighting working up to 16-18hours; up to 15000lux. aluminum charger with MCU controlled system. CE/Exi approved.
Features of GL5-D mining headlamp
Specifications for GL5-D Safety miners cap lamp:
| Model | Corded Mining Cap Lamp |
| Rated capacity | 7800mAh |
| Rated voltage | 3.7V |
| Continuous discharging time | 8H |
| Main light LED working voltage | 3V |
| Main light LED Working current | 450mA |
| Main light power | 1.67W |
| Main light luminous flux | 216lum |
| Lamp lighting degree initial lighting degree in 1m | 15000lux |
| Main light life span | 100000hrs |
| The life span of the battery(Recharges) | 1000cycles |
| Charging time | 8H |
| Dimensions | 17*10*8cm |
| Weight | 420g |
Features:
| 15000lux high beam corded lamp. | |
| 7.8Ah big capacity battery pack. | |
| Low power warning function for safety lighting. | |
| Aluminum lighting cup with perfect lighting spot. | |
| Anti-explosive,flame-resistant, impact-resistant,IP68 water-proof. |

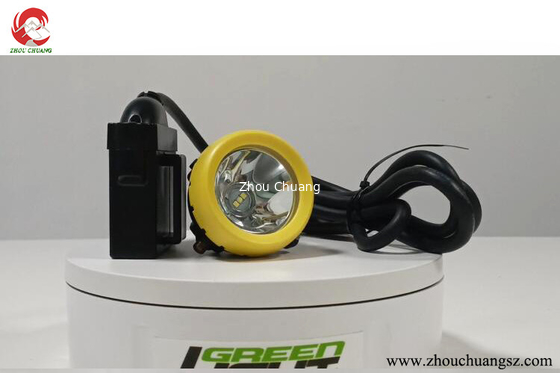

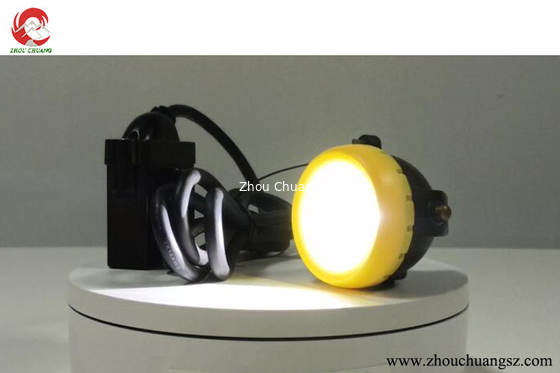

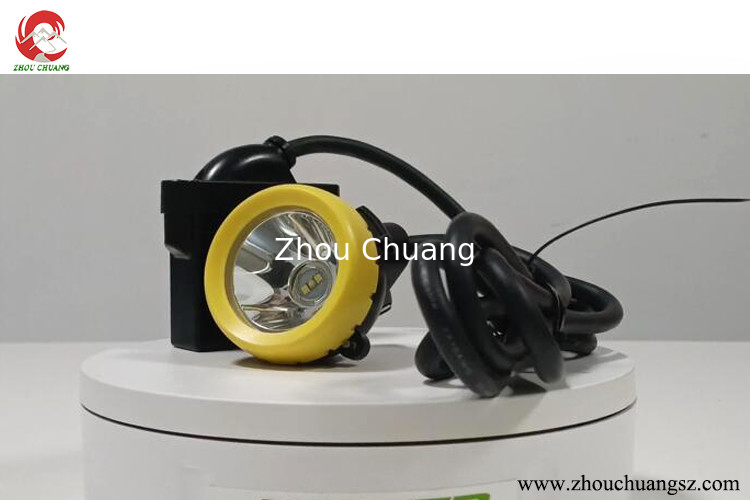

Product images
Trouble and troubleshooting:
|
Trouble description |
Trouble analysis |
Troubleshooting |
|
The light is not on when pressing the button |
Battery power is used up or automatic opening protection |
Charge the light |
|
Working time is less than 12 hours |
The battery is not fully charged |
Make sure the lamp is well connected to the charger when charging |
|
Longer charging time |
The charging points poor contact |
Clean the charging points and slot |
|
Low illuminance |
Dirty lens |
Clean water wash lens |
Packing:
one set each gift box with 1pcs lamp + 1pcs USB +1pcs Wall charger + 1pcs Manual 30 sets/ carton
.
ZHOU CHUANG TECHNOLOGY CO., LTD is based in Shenzhen, Guangdong, China. The company was founded in 2008 to design, develop, and manufacture personal lighting solutions for underground mining using the latest LED and battery technologies.
Certificate
