Product Details:
Payment & Shipping Terms:
|
Product Name: | Underground Mining Cap Lamp | Light Source: | One Main Light Two Auxiliary Llights |
---|---|---|---|
Brightness: | 15000lux | Batrry Capacity: | 6.8Ah |
Weight: | 450g | Charging Ways: | USB Charging |
Waterproof Grade: | IP68 | Usage: | Mining,oil,gas,other Speical Environment |
Color: | Green,Transparent |

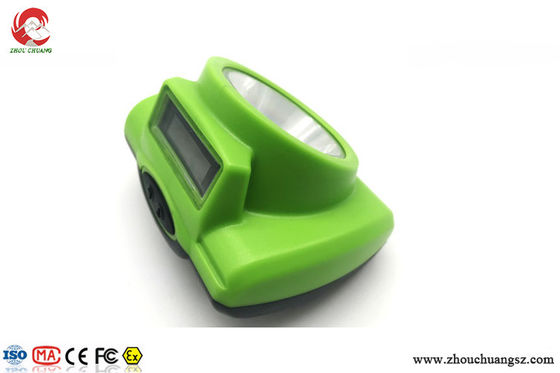

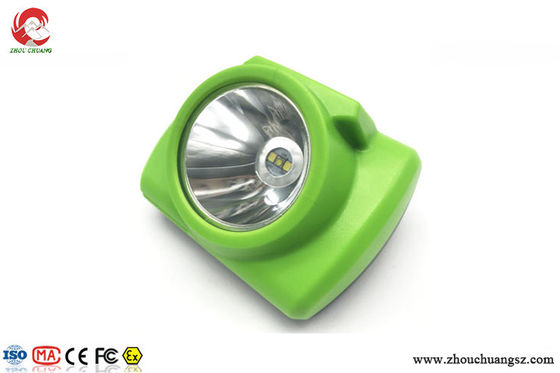

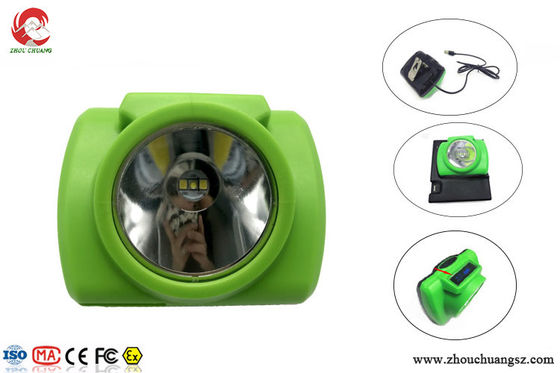

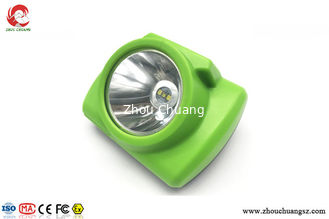

Portable Green color LED mining headlamp with OLED screen 18000LUX 3.7V IP68
Rechargeable LED mining light description:
2-step switch (main or auxiliary light)
Adjustable Angle Hard Hat Clip
Adopt a Cree LED light source
Radio Frequency Immune
OLED screen for battery capacity, date, time, customers LOGO
Enhanced Charging System, support USB charging & desktop charging.
1.1 00000hours lifespan and super stable brightness
LED lifespan depends on the quality of LED and the driving power, this new cordless cap lamp applies CREE LED and advanced diver, and its life
span is up to 100000hours. With the exact design of the reflecting cup, the brightness of this lamp reaches 16000LUX illumination which is the highest brightness in this kind of lamp.
2.0LED Display the battery power display
This new cordless digital lamp applies OLED display technology, allows you to easily grasp the time and remaining power. The OLED screen is an active light emitting display, high contrast, wide visual angle(up to 170),fast response, high efficiency, low operating voltage(3- 10V), ultra thinness (less than 2mm). This screen can display time and battery capacity to keep you have a convenient use during outdoor activities. And we can also edit some text information to be displayed in the screen such as the company logo, starting words, or other information that you need to display to the user. It improves the feeling to the users.
3.Safety reliable and free maintenance
This new cordless digital lamp uses 2pcs 18650 Lithium batteries which can keep the lamp more than 13 hours continuous working time.The motherboard is designed with short- circuit, over-charging, over- discharging protection.And it is also high temperature and low temperature resistant. It is also water-proof, anti-explosive proof to keep reliable and safe use.
Main parameters of other series of rechargeable LED headlamp:
Item | GLC-6(S) | GLC-6(B) | GLC-6(C) | GLC-6(D) | GLC-6(E) |
Light source | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL |
Battery capacity | 6.8Ah | 6.8Ah | 2.6Ah | 3.4Ah | 5.2Ah |
Rated voltage | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V |
Power of main light | 2.96W | 2.22W | 1.3W | 1.3W | 1.3W |
Brightness of ML | 20000lux | 13000lux | 4000lux | 6000lux | 10000-12000lux |
Illuminous of ML | 385lum | 222lum | 130lum | 130lum | 130lum |
OLED screen | yes | yes | no | no | no |
Working time | 13hours | 15hours | 13hours | 13-15hours | 15-18hours |
Life span of light source | 100000hours | 100000hours | 100000hours | 100000hours | 100000hours |
Battery cycles | 1200 | 1200 | 1200 | 1200 | 1200 |
Charging time | 4hours | 4hours | 4hours | 4hours | 4hours |
Weight | 245g | 245g | 190g | 190g | 245g |
Ingress protection | IP68 | IP68 | IP68 | IP68 | IP68 |
Certificate | CE, Atex | CE, Atex | CE, Atex | CE, Atex | CE, Atex |
Other new design:
We design newly corded/cordless cap lamp that is based on GLC-6 according to customers' feedback.
NFC can be added for the purpose of punching attendance records.
Can plant the tracking system into this cap lamp.
We are researching and developing RFID system into cap lamp. It is a trend for underground mines.
Customized Service
We can customized LED mining lamps according to customers' requirements, such as laser LOGO, product serial number, bezel color, and accessories material, and so on.
Production
Packing:
one set each gift box with 1pcs lamp + 1pcs USB + 1pcs Manual 30 sets/ carton
ZHOU CHUANG TECHNOLOGY CO., LTD
We are dedicated to led underground mine lights since 2006.
We have engineer of appearance, function, new design,drawing.
Strict Controlled quality from raw material to finished products.
OEM/ODM Service.
Trial Order available.
Customization service according to customers' feedback and requirement.
We have long term cooperations with South Africa and Canada customers (who can plant a tracking system to cap lamp).
High safety cap lamp is a trend.
We are researching and developing RFID/NFC to plant into cap lamp to real-time tracking.
