Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Size: | Suitable For 25mm To 64mm Valve Rod |
|---|---|---|---|
| Colour: | Red Colour | PVC Tag: | Yes, Available |
| Type: | Gate Valve Lock Out | Free Sample: | Available |
| Warranty: | 1 Year | Usage: | Oil And Gas, Chemical |
Safety Gate Valve Lockout tagout products ABS Material suitable for 25-64mm valve road
Specification:
ZC-F11 Standard Gate Safety Valve Lock Out
1. ABS material.
2. Suitable for 25mm to 64mm valve rod.
3. Can be equipped with 1 pcs padlock (shackle diameter less than 7mm).
4. Colour can be customized.
Product details:
1. Simple and easy to use.
2. Made of tough & durable polypropylene.
3. Resists most chemicals, temperature.
4. Outward/Inward rotation allows for easier installation & storage.
5. Surrounds the valve handwheel to protect against accidental operation.
6. 5 sizes available, each size nests within the next larger size for easy storage.
7. Supplied with "Do Not Operate" warning message.
Technical Specification:
| Part Code | Description |
| ZC-F11 | Valve rod diameter 25mm-64mm( 1”-2.5”) |
| ZC-F12 | Valve rod diameter 64mm-127mm (2.5”-5”) |
| ZC-F13 | Valve rod diameter 127mm-165mm (5”-6.5”) |
| ZC-F14 | Valve rod diameter 165mm-254mm (6.5”-10”) |
| ZC-F15 | Valve rod diameter 254mm-330mm (10”-13”) |
Standard Gate Valve Lockout:
OEM manufacturing supported
1. Material: durable polypropylene for superior impact and chemical resistance.
2. Usage: place over the gate valve between the two parts and put your lockout padlock
3. Features:
a. OEM Manufacturing Service Supported
b. Easily operated, light weighted,
c. Resistant to cracking and abrasion.
d. Service temperatures from -25°F to 200°F
e. Available in 5 sizes and 4 colors
4. Applied Size: lockout out gate valves from 2.5cm to 33 cm
5. Package: 6 piece
Lockout &Tagout Devices Valve Lockout:
Valve Lockouts are a simple, low cost and effective way to prevent unauthorised operation of valves. It enables different types and sizes of valves to be locked out. No other device offers such fleibility and security. All sizes and colors are available. Custom valve lockout can be made upon request.
Related Valve Lock Out:
| ZC-F01 | Small lockout locks out pipes from 13mm to 64mm in diameter | ||||||||
| ZC-F02 | Large lockout locks out pipes from 50mm to 200mm in diameter | ||||||||
| ZC-F03 | Small lockout suitable for 1/4'' to 1'' pipes in diameter | ||||||||
| ZC-F04 | Large lockout locks out pipes from 1 1/2'' to 3'' in diameter | ||||||||
| ZC-F05 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes | ||||||||
| ZC-F06 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes | ||||||||
| ZC-F07 | Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes | ||||||||
| ZC-F11 | Lockout suitable for 1" --- 2 1/2" valve rod | ||||||||
| ZC-F12 | Lockout suitable for 2 1/2" ---5" valve rod | ||||||||
| ZC-F13 | Lockout suitable for 5" --6 1/2" valve rod | ||||||||
| ZC-F14 | Lockout suitable for 6 1/2"---10" valve rod | ||||||||
| ZC-F15 | Lockout suitable for 10" --13" valve rod | ||||||||
| ZC-F16 | Lockout suitable for 1" --- 6 1/2" valve rod | ||||||||
| ZC-F21 | Lockout suitable for 8mm-45mm valve rod | ||||||||
| ZC-F31 | For quarter-turn ball valves | ||||||||
| ZC-F32 | For 3.4 or 5-way valves | ||||||||
| ZC-F33 | Using cable attachment for gate valves | ||||||||
| ZC-F34 | For butterfly valves | ||||||||
| ZC-F35 | Universal valve lockout for most valves | ||||||||
| ZC-F41 | Lockout suitable for valve diameter under 22mm. | ||||||||
| ZC-F42 | Lockout suitable for valve diameter from 23mm to 34.9mm. | ||||||||
| ZC-F43 | Lockout suitable for valve diameter from 44mm to 53.9mm. | ||||||||
| ZC-F14 | Lockout suitable for valve diameter from 55mm to 63.5mm. | ||||||||

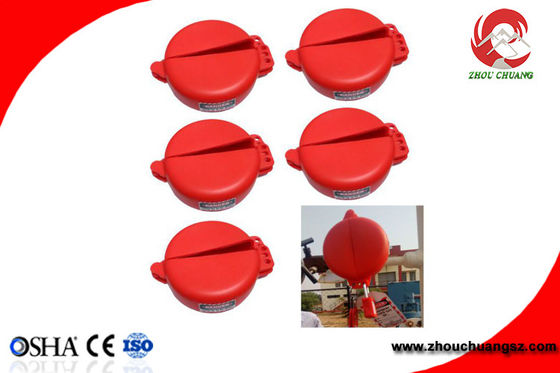

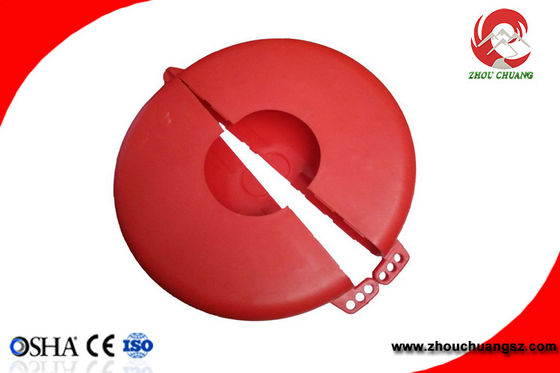

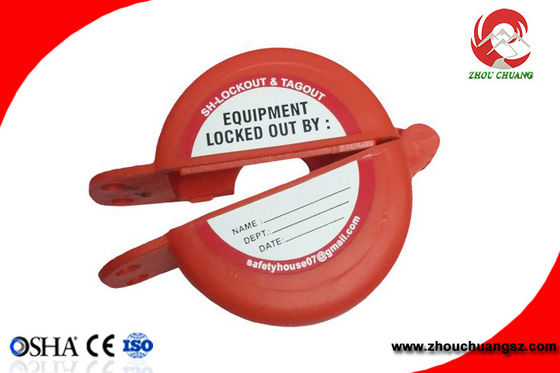

Product Picture:
