Product Details:
Payment & Shipping Terms:
|
| Materia: | Rugged Polypropylene And Modified PA | Sample: | Have In Stock, FREE Sample Is Available |
|---|---|---|---|
| Color: | Normally Red, Other Colors Can Be OEM | Usage: | Industrial, Electrical |
| Weight: | 16g | Fits Switches Size: | 16.5mm Wide X 11.6mm Thick (usually Up To 277 Volt) |
| Delivery Time: | 5-8 Work Days | Logo: | OEM |
Product Parameter

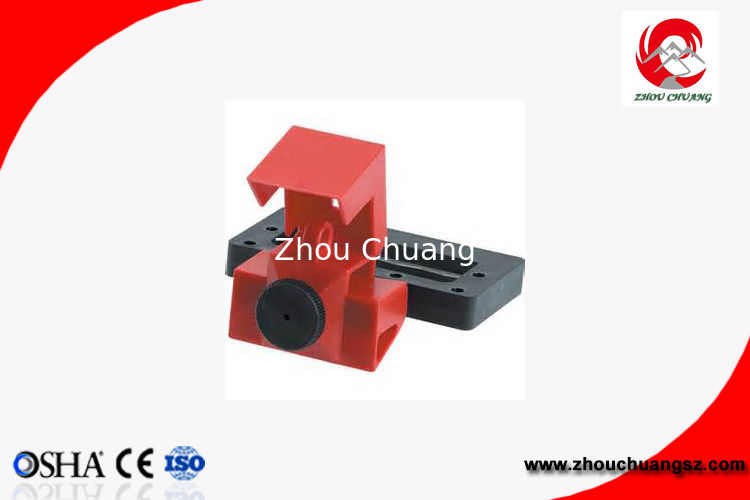

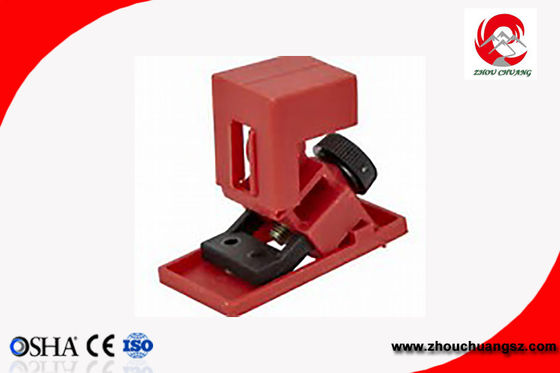

Security Electrical Miniature Clamp-on Circuit Breaker Lockout for switch
Clamp - on breaker Lockout
a. Material: rugged polypropylene and impact modified nylon PA.
b. Can use in all kinds of middle type built - in trip moulded case circuit breaker lockout.
c. Use thumbscrew to clamp lockout securely onto switch tongue,then pull cover and lock in place to prevent clamp from being loosened.
d. The lockouts can take padlock with a shackle diameter up to 7mm.
e. New blade design provides tighter grip with less torque on thumb screw.
f. Can slide long clamp plate to ensure lock out breaker.
g. Size , color, material, logo can customized.
Part Code |
Description |
Weight |
Package |
ZC-D14 |
120V-277V |
16g |
10pcs/box |
ZC-D15 |
480-600V |
46g |
8pcs/box |
ZC-D16 |
480-600V |
92g |
2pcs/box |
ZC-D14 Fits switches 16.5mm wide x 11.6mm thick (usually up to 277 Volt)
ZC-D15 Fits switches 41.2mm wide x 13.9mm thick (usually 480/600 Volt)
ZC-D16 Fits oversized switches 63.5mm wide x 22.2mm thick (usually 480/600 Volt)
Why choose Zhou Chuang ?
About us
Some of our strengths that make us your most reliable business partner are:
1) Extensive industry knowledge / experience
2) Wide range of products for diverse applications in various industry segments
3) Our comprehensive quality policy
4) Reliable, well-organized and efficient distribution network
5) Competitive prices
6) Our stable business model, robust finance,honest value system and customer-centric approach.
Shenzhen Zhou Chuang Technology Co.,Ltd is an expertised manufacturer of safety lockout tagout which is located in ShenZhen area in china. Our safety solutions and equipments have achieved its desired growth due to the appreciation and goodwill that customers have showed on them from all over the world. Our company is also well know for its sincere efforts at keeping up to customer satisfication and demands.
Our products covers
Safety Lockout Padlock, Lockout Hasp, Valve Lockout, Pneumatic Lockout, Cable Lockout, Circuit Breaker Lockout, Lockout Station, Tag & Label.
Our Service
a) For all your inquires about us or our products, we will reply you in details within 24 hours.
b) We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language.
c) We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
d) Discounts are offered based on order quantities
FAQ
1. Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every lock body, either by laser, or by moulds.
2. Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3. Q: Can I have some samples before formal order?
A: Yes, we can send you some free samples for your test before your order.
4. Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released. For customized products, it takes longer.
5. Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pls contact us freely, we'll help solving the problems within 24 hours.
6. Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7. Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes, we have a research & development dept., we're willing to develop everything that you demand in safety lockout industries.
