Payment & Shipping Terms:
|Type:||Ball Valve Lockout||Materia:||ABS|
|Customer Logo:||Yes, Can Laser Or Print Customers Logo On Products||Sample:||Have In Stock, Sample Is Available|
|Color:||Normally Red, Other Colors Can Be OEM||Usage:||Industrial|
|Size:||Suitable For 50mm-200mm Valve Rod||Package:||2pcs One Box|

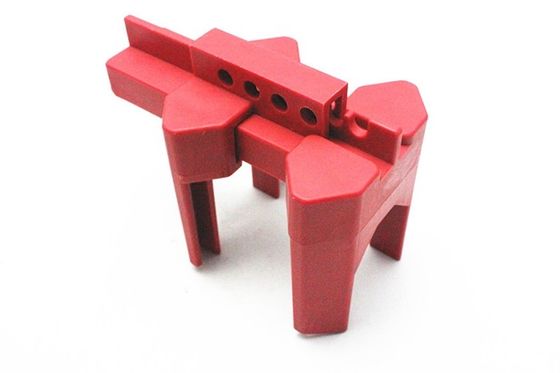

Plastic 2"-8" Red Adjustable Ball Valve Safety Lockout Device
The small lockout devices will lock valve handle diameters from 1/2" to 2-1/2". Our large ball valve lockout devices can lock out valve sizes from 2" to 8" in diameter. Device material also varies depending on application.
a) Made from polypropylene, highly resistant to cracking and abrasion, resistant to extreme weather temperature conditions.
b) The two halves of the lockout encompass the ball valve handle to secure it from inadvertent activation of the valve.
c) Suggested to be equipped together with padlocks. Padlock locking shackle max diameter is 9mm.
d) All colors are available, normally red in stock.
|ZC-F01||Suitable for DN8-DN50 Ball Valve|
|ZC-F02||Suitable for DN50-DN200 Ball Valve|
Related Valve Lock Out
|ZC-F01||Small lockout locks out pipes from 13mm to 64mm in diameter|
|ZC-F02||Large lockout locks out pipes from 50mm to 200mm in diameter|
|ZC-F03||Small lockout suitable for 1/4'' to 1'' pipes in diameter|
|ZC-F04||Large lockout locks out pipes from 1 1/2'' to 3'' in diameter|
|ZC-F05||Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes|
|ZC-F05A||Adjustable Ball Valve Lockout , with auxiliary parts|
|ZC-F06||Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes|
|ZC-F06A||Adjustable Ball Valve Lockout , Suitable for DN50-DN70, with auxiliary parts|
|ZC-F07||Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes|
|ZC-F08||Adjustable Ball Valve Lockout , Suitable for DN8-DN125 ball valve|
|ZC-F11||Lockout suitable for 1" --- 2 1/2" valve rod|
|ZC-F12||Lockout suitable for 2 1/2" ---5" valve rod|
|ZC-F13||Lockout suitable for 5" --6 1/2" valve rod|
|ZC-F14||Lockout suitable for 6 1/2"---10" valve rod|
|ZC-F15||Lockout suitable for 10" --13" valve rod|
|ZC-F11A||Lockout suitable for 1" --- 2 1/2" valve rod|
|ZC-F12A||Lockout suitable for 2 1/2" ---5" valve rod|
|ZC-F13A||Lockout suitable for 5" --6 1/2" valve rod|
|ZC-F14A||Lockout suitable for 6 1/2"---10" valve rod|
|ZC-F15A||Lockout suitable for 10" --13" valve rod|
|ZC-F15P||Lockout suitable for 13" --18" valve rod|
|ZC-F16||Lockout suitable for 1" --- 6 1/2" valve rod|
|ZC-F21||Lockout suitable for 8mm-45mm valve rod|
|ZC-F31||For quarter-turn ball valves|
|ZC-F32||For 3.4 or 5-way valves|
|ZC-F33||Using cable attachment for gate valves|
|ZC-F34||For butterfly valves|
|ZC-F35||Universal valve lockout for most valves|
|ZC-F41||Lockout suitable for valve diameter under 22mm.|
|ZC-F42||Lockout suitable for valve diameter from 23mm to 34.9mm.|
|ZC-F43||Lockout suitable for valve diameter from 44mm to 53.9mm.|
|ZC-F14||Lockout suitable for valve diameter from 55mm to 63.5mm.|
1. It is very convenient to use and simple to install.
2. It is made of advanced polypropylene material, completely insulation, strong and durable.
3. Good solubility, corrosion resistance, high-temperature resistance, can be used in all kinds of bad environment.
4. Excellent resistance to fracture and wear-resisting performance, can prolong the life time of ball valve.
5. It complies with the OSHA standards.
6. Many colors for choice, that is advantageous for the division of labor management.
7. Suitable ball size: DN8 to DN50
1. Ball valve lockout is a versatile, easy to use lockout constructed of tough polypropylene.
2. Valve lockout devices locks a range of different pipes by securing the valve handle in the OFF position.
3. It secures handles from inadvertent activation and protects the user from electrical risks.
The Kinds of safety lock
Safe padlock cable lock | chain lock and unlock | system lock, safety valve locks, lock hook | more | even row locks, lock plug locks | power locks, circuit breaker switch lock | electric switch lock, gas and air line | air lock, lock security tags | security, lock box | grouping padlock box | group operating locks, lock hangs Taiwan | lock management center, combination locks | safety locks suit.
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Safety Lockout are widely used in Chemical, Electrical, Automobile industry and so on.
• Employers, supervisors and employees all have individual responsibilities regarding lockout under the HSE Act.
• Lockout is important for operators, maintenance staff, contractors, cleaners and any other person required to work near moving parts of machinery.
The safety lockouts and equipment are environment friendly, our company is equipped to cater and offer the best safety products for different segments of industries such as Construction, Petrochemicals, Pharmaceuticals, Power plants, Mining, Iron and steel, etc. We supply various high quality and durable safety lockout devices for the safety operation and identification of hazards.
After sales service
1. At least One year warranty.
2. Within the warranty year,we can fix the product for you for free.
3. Out of the warranty year,we still can fix it for you,but you need to pay a little charge.
4. Customized design is available,accept OEM and ODM.
If you have any question or suggestion,plz contact the service.
1. Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every lock body, either by laser, or by moulds.
2. Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3. Q: Can I have some samples before formal order?
A: Yes, we can send you some free samples for your test before your order.
4. Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released. For customized products, it takes longer.
5. Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pls contact us freely, we'll help solving the problems within 24 hours.
6. Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7. Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers, we'll guanartee monthly payment after good cooperationship.
8. Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes, we have a research & development dept., we're willing to develop everything that you demand in safety lockout industries.
9. Q: Do you have any office in other countries?
A: Currently we don't have, but we're discussing with some good customers. If you're willing to be our agent in any countries, pls contact us freely.
