Product Details:
Payment & Shipping Terms:
|
| Type: | Circuit Breaker Lockout | Material: | Nylon,U Type Sheet |
|---|---|---|---|
| Customer Logo: | Yes, Can Laser Or Print Customers Logo | Color: | Normally Red, Other Colors Can Be OEM |
| Usage: | Industrial, Electrical | Package: | 2pcs One Box |
| Screw: | Self - Carried Tighten Screw | Color: | Red |
Without Pedal Multi-Function Circuit Breaker Lockout MCCB ZC-D23 With Self - Carried Tighten Screw
1.Description for this Safety Lock Out
a) Made of tough and durable impact nylon and brass screw with chrome-plated.
b) Self-carried tighten screw,can easily lock out without using any tools.
c) Widely used in push-button circuit breaker protector as shown in pictures(handle width <=20mm).
d) Unique U-type stainless steel sheet design can lock out stronger and more relable.
e) Can customize stainless steel trademark.
Proprietary Technology
1. Imported material
2. Logo custom made service
3. Widely usage
4. Easy for locking
Products Advantage
1. Imported material and high quality processing: Made from engineering plastic strengthened nylon PA and chrome plated brass screw.
Strengthened nylon PA + chrome plated brass screw
2. With locking screw, no need other tools to lock.
In order to use more expediently, and easy to carry with, we design this item.
Compared with old similar item, can lock the breaker without screwdriver. The diameter of screw is bigger than the old one, screwing up comfortable and labor saving.
3. Wildly usage: Applicable to all kinds of small and medium size MCCB, and any miniature circuit breaker.(No need to adjust the panel or breaker)
4. Logo custom made service: can be customized stainless steel brand.
Specification
| Material: | Nylon And Brass | Color: | Red |
|---|---|---|---|
| Shackle Diameter: | <=7mm | Description: | Unique U-type Stainless Steel Sheet Design Can Lock Out Stronger And More Relable |
| Customize: | Yes | OEM: | Yes |
| Logo: | Yes | Certification: | CE,OSHA,ISO |
Related Clamp - on circuit breaker lockout
| Part No. | DESCRIPTION |
| ZC-D22 | Can lock out with padlock shackle diameter <= 7mm |
| ZC-D23 | Can lock out with padlock shackle diameter <= 7mm |
| ZC-D23W | lock body button no foot design, can lock out with padlock shackle diameter <= 7mm |
| ZC-D24 | Can lock out with padlock shackle diameter <= 7mm |
| ZC-D24L | Can lock out longer closing stroke circuit breakers, available padlock shackle diameter <= 7mm |

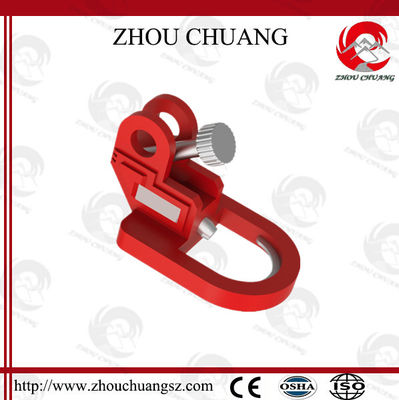

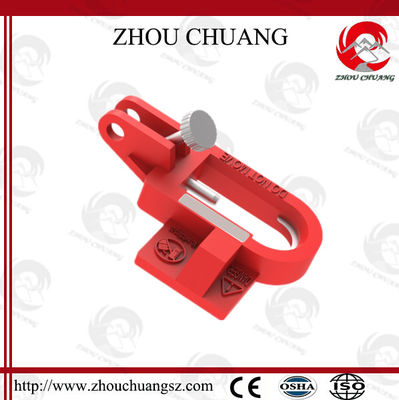

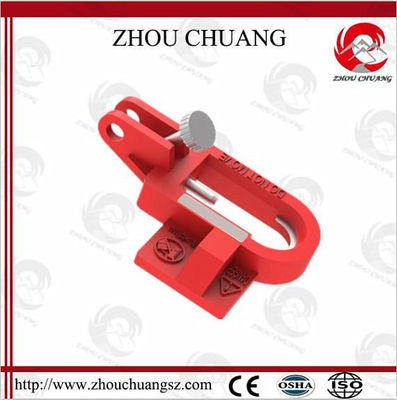

Product Pictures
Circuit Breaker Lockout Range
| Model No | Details | ||||||||
| ZC-D01 | Miniature Circuit Breaker Lockout, Pin Out Standard | ||||||||
| ZC-D02 | Miniature Circuit Breaker Lockout, Pin In Standard | ||||||||
| ZC-D03 | Miniature Circuit Breaker Lockout, Tie Bar Lockout | ||||||||
| ZC-D04 | Miniature Circuit Breaker Lockout, Pin Out Standard | ||||||||
| ZC-D10 | Universal Miniature Breaker Lockout, Multi-funcational MCB lockout | ||||||||
| ZC-D11 | Clamp-on Breaker Lockout, 120-277V 15*13*137.5px | ||||||||
| ZC-D12 | Clamp-On Breaker Lockout , 480-600V 25.5*17*225px | ||||||||
| ZC-D13 | Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px | ||||||||
| ZC-D06 | Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm | ||||||||
| ZC-D07 | Moulded Case Circuit Breaker Lockout, 125mm*63mm*40mm | ||||||||
| ZC-D21 | Snap-On Breaker Lockout , 120V, 55mm*9mm*21mm | ||||||||
| ZC-D31 | Plug Lockout , 110V,220V,550V | ||||||||
| ZC-D41 | Plug Lockout , 110V,220V,550V | ||||||||
| ZC-D51 | Emergency Stop Lockout , 22mm | ||||||||
| ZC-D52 | Emergency Stop Lockout , 30mm | ||||||||
| ZC-PM01 | Penumatic Quick-disconnect Lockout, Fitted with 6.4mm, 9.5mm & 12.7mm screwed joint | ||||||||
| ZC-PM11 | Air Source Lockout, Available for 8-45mm vales | ||||||||
| ZC-PM21 | Cylinder Tank Lockout, | ||||||||
| ZC-PM31 | Gas Cylinder Lockout | ||||||||
Why Use Lockout/Tag out
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant’s management.
Application
Safety Lockout are widely used in Chemical, Electrical, Automobile industry and so on.
• Employers, supervisors and employees all have individual responsibilities regarding lockout under the HSE Act.
• Lockout is important for operators, maintenance staff, contractors, cleaners and any other person required to work near moving parts of machinery.
The safety lockouts and equipment are environment friendly, our company is equipped to cater and offer the best safety products for different segments of industries such as Construction, Petrochemicals, Pharmaceuticals, Power plants, Mining, Iron and steel, etc. We supply various high quality and durable safety lockout devices for the safety operation and identification of hazards.
Why choose Zhou Chuang ?
Quality Policy
We deliver quality to our customers through quality built into our products at various stages ranging from product design up to testing and through quality services to our customers.
To achieve these objectives, we have a highly knowledgeable / experienced team of professionals aided by highly skilled manpower, have deployed the latest technologies for product design/manufacturing/testing,have installed state-of-the-art management systems and have adopted customer-centric approach.
Warranty and after-sales service
1) Warranty: 1 years, for defective one, we will replace a total new cap lamp during warranty time
2) After sales service: will deal with your complaint at first time, give you solution within 5 working days
3) Free samples: free samples will be provided when our new models come out
4) Market support: we can support you to do advertisment in local magazine and provide samples with
big discount for exhibition
