Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Corded Mining Lamp | Light Source: | One Main Light Two Auxiliary Llights |
|---|---|---|---|
| Brightness: | 15000lux | Batrry Capacity: | 6.6Ah |
| Weight: | 420g | Charging Ways: | Desktop Charger |
| Waterproof Grade: | IP68 | Usage: | Mining,oil,gas,other Speical Environment |
| Color: | Yellow+Blue |

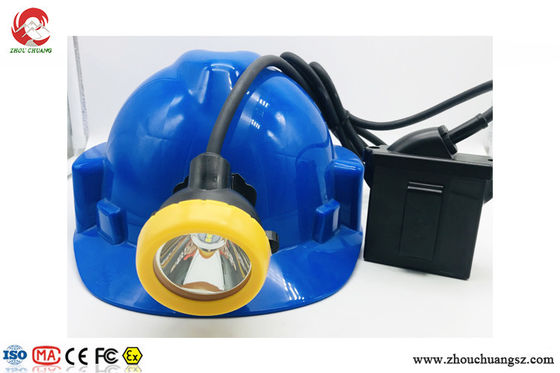

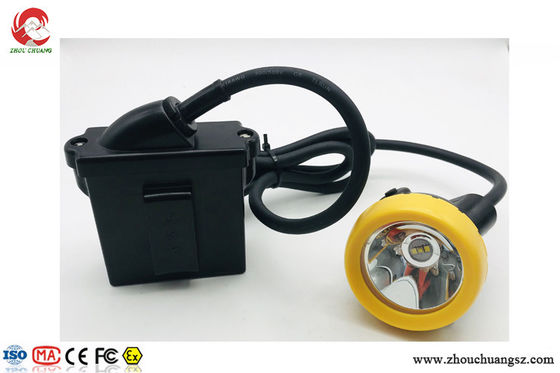

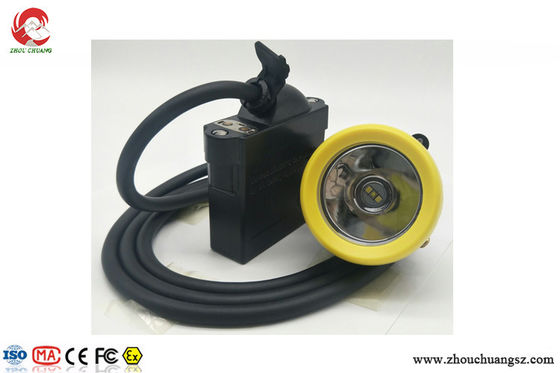

LED miners cap lamp with cable 7.8Ah Li-ion battery pack 10000LUX 3.7V IP68
Main Features for Model GL8-C mining headlamp with cable:
1. Brightness: 10000lux high beam corded lamp.
2. One main light and two auxiliary lights.
3. 7.8Ah big battery capacity and 18hours lighting working time.
4. Low power warning function for safety lighting.
5. Silicon button cap with good touch and long life usage.
6. Special material with a flame-resistant, impact-resistant. ATEX explosion-proof, Dust-proof.
7. Environmental: Lithium battery with short circuit protection, overcharging protection and over-discharging, free mataince long battery life span.
8. OEM and ODM available. Write the request to cap lamps, such as clients company name, LOGO, series No, and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve, and current to design the Light Beam.
10. Quality is our culture. We will be responsible for you if any quality problems and warranty time is one year.
Main parameter of two series of rechargeable headlamp:
| Items | Value | Value |
| Model | GL8-C | GL5-C |
| Light Source | 1 main light and 2 auxiliary lights | 1 main light and 2 auxiliary lights |
| Battery Capacity | 7.8Ah Li-ion battery pack | 6.6Ah Li-ion battery pack |
| Rated Voltage | 3.7V | 3.7V |
| Main light current | 450mA | 450mA |
| Power of main light | 1.67W | 1.67W |
| Illuminous | 216lum | 216lum |
| Brightness | 10000lux | 10000lux |
| Life span of main light | 100000hours | 100000lux |
| Battery cycles | 1000cycles | 1000cycles |
| Working time | 18hours | 16hours |
| Weight | 420g | 420g |
| Waterproof grade | IP68 | IP68 |
Trouble and troubleshooting:
| Trouble description | Trouble analysis | Troubleshooting |
| Ligth is not on when pressing the button | Battery power is used up or automatic opening protection | Charge the light |
| Working time is less than 12hours | The battery is not fully charged | Make sure the lamp well connected to the charger when charging |
| Longer charging time | The charging points poor contact | Clean the charging points and slot |
| Low illuminance | Dirty lens | Clean water wash lens |
Our service
Package Include
1. 1pcs headlamp
2. 1pcs charger.
3. one-piece gift box.
4. manual.
5. Transport: TNT/FEDEX/UPS/EMS/by sea/by air up to your options.
FAQ:
Q1: Can I get some samples?
A1: Yes, the Sample order is available for quality checks and market test .But you have to pay for it.
Q2: What’s the delivery time?
A2: It usually takes about 3-5 working days for small orders and 10-20 days for bulk order.
Q3: What’s your warranty terms?
A4: We offer 12 months warranty time.
Q4: Do you have the products in stock?
A5: Depends on your request, We have standard models in stock. Some special products and big order will be newly produced according to your order.
Q5: Can I mix different power in one container?
A6: Yes , Different models can be mixed up in one container, even one order.
Q6: How does your factory do quality control?
A7: Quality is a priority, we always attach the importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping. Welcome to come to China and visit our factory before cooperation and delivery.
Q7: Can you sell spare parts?
A8: Yes,Of course, .we can sell spare parts to you.
Q8: Can you make the new miner lamps according to the customer's requirement?
A10: Yes, We have a lot of experience to design new wireless and miner lamp with cable since 2006. It’s better to design as your writing diagram.
Q9: What is your MOQ?
A10: 1pcs can be acceptable.
A11: If you do not know a lot for miner lights, please contact us and we can customize especially for you and recommend you suitable mining light and favorable price.
